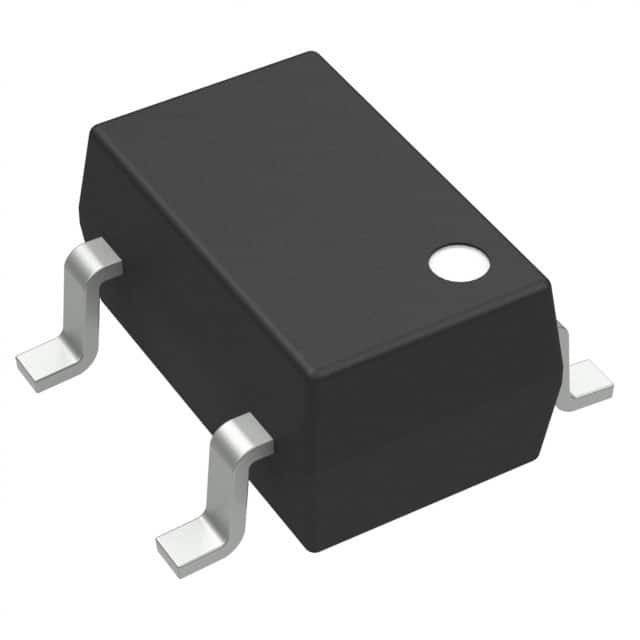

NCP551SN33T1

SKU: 49197

Manufacturer: onsemi

LDO Regulator Pos 3.3V 0.15A 5-Pin TSOP T/R

4520 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.39.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	LDO
Number of Outputs	1
Polarity	Positive
Accuracy (%)	±2
Output Type	Fixed
Output Voltage (V)	3.3
Maximum Output Current (A)	0.15(Min)
Minimum Input Voltage (V)	0
Maximum Input Voltage (V)	12
Maximum Dropout Voltage @ Current (V)	0.15@10mA
Line Regulation	30mV
Load Regulation	65mV
Maximum Quiescent Current (mA)	0.008
Junction to Ambient	250°C/W(Typ)
Special Features	Thermal Protection
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Original Package	TSOP
Pin Count	5
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	1(Max)
Package Length	3.15(Max)
Package Width	1.65(Max)
PCB changed	5
