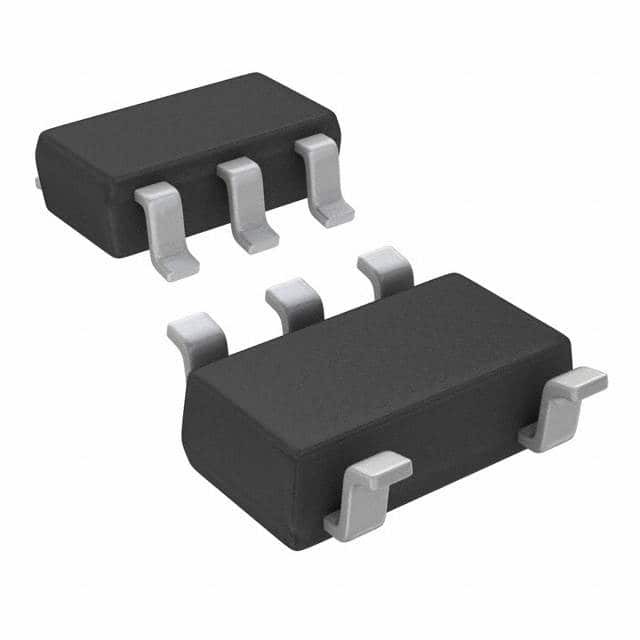

NC7SZ384M5

SKU: 70324

Manufacturer: onsemi

Bus Switch 1-Element 1-IN 5-Pin SOT-23 T/R

2190 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Supplier Unconfirmed
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.31.00.01
Automotive	No
PPAP	No
Logic Function	Bus Switch
Number of Elements per pcs	1
Number of Inputs per Chip	1
Number of Outputs per Chip	1
Absolute Propagation Delay Time (ns)	5.5
Maximum Propagation Delay Time @ Maximum CL (ns)	0.25@4V to 5.5V
Maximum On Resistance (Ohm)	20
Maximum Low Level Output Current (mA)	128
Operating Supply Voltage-Min (V)	4
Typical Operating Supply Voltage (V)	5
Operating Supply Voltage-Max (V)	5.5
Maximum Quiescent Current (uA)	10
Propagation Delay Test Condition (pF)	50
Maximum Power Dissipation (mW)	200
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Original Package	SOT-23
Pin Count	5
Standard Package Method	SOT-23
Terminal Form	Surface Mount
Package Height	1.3(Max)
Package Length	3(Max)
Package Width	1.7(Max)
PCB changed	5
