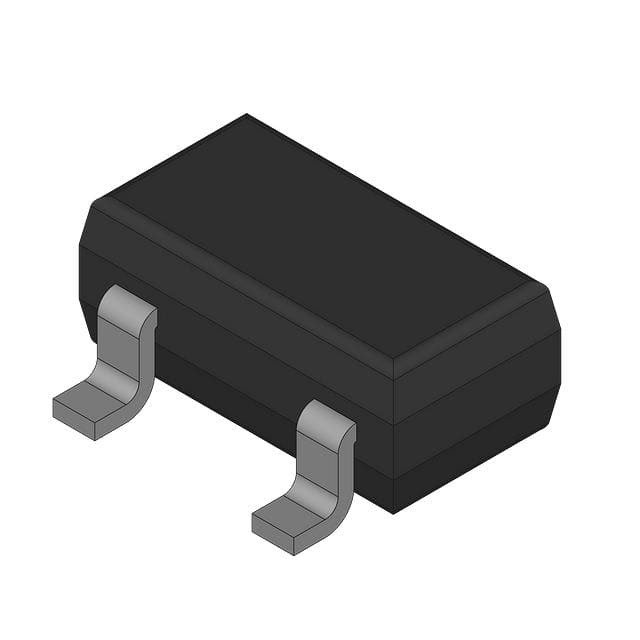

MUN2232T1

SKU: 70299

Manufacturer: onsemi

Trans Digital BJT NPN 50V 100mA 338mW 3-Pin SC-59 T/R

1540 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Obsolete
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	NPN
Configuration	Single
Collector-Emitter Voltage-Max (V)	50
Maximum Continuous DC Collector Current (mA)	100
Minimum DC Current Gain	15@5mA@10V
Typical Input Resistor (kOhm)	4.7
Typical Resistor Ratio	1
Maximum Collector-Emitter Saturation Voltage (V)	0.25@1mA@10mA
Maximum Power Dissipation (mW)	338
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Pin Count	3
Standard Package Method	SC
Original Package	SC-59
Terminal Form	Surface Mount
Package Height	1.09
Package Length	2.9
Package Width	1.5
PCB changed	3
