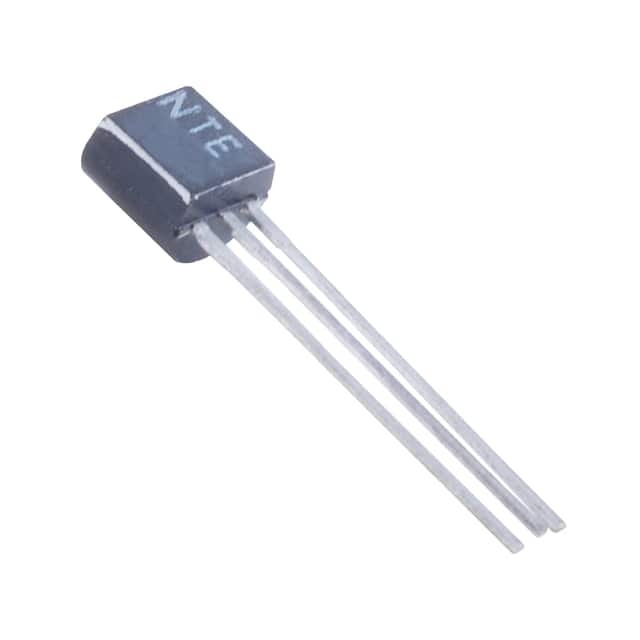

MPSA55

SKU: 34855

Manufacturer: onsemi

Trans GP BJT PNP 60V 0.5A 625mW 3-Pin TO-92 Box

3630 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8541.29.00.95
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	PNP
Product Category	Bipolar Small Signal
Configuration	Single
Number of Elements per pcs	1
Collector Base Voltage-Max (V)	60
Collector-Emitter Voltage-Max (V)	60
Maximum Emitter Base Voltage (V)	4
Maximum Collector-Emitter Saturation Voltage (V)	0.25@10mA@100mA
Maximum DC Collector Current (A)	0.5
Maximum Collector Cut-Off Current (nA)	100
Minimum DC Current Gain	50@10mA@1V
Maximum Power Dissipation (mW)	625
Maximum Transition Frequency (MHz)	50(Min)
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Box
Original Package	TO-92
Pin Count	3
Standard Package Method	TO-92
Terminal Form	Through Hole
Package Height	5.33(Max)
Package Length	5.2(Max)
Package Width	4.19(Max)
PCB changed	3
