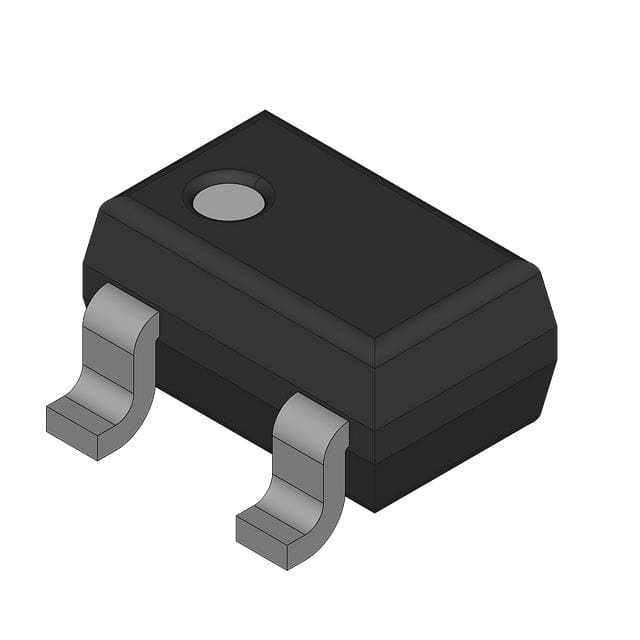

MCH4020-TL-H

SKU: 41722

Manufacturer: onsemi

Trans RF BJT NPN 8V 0.15A 400mW T/R

2970 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.29.00.75
Automotive	No
PPAP	No
Type	NPN
Body Material	Si
Configuration	Single Dual Emitter
Number of Elements per pcs	1
Collector Base Voltage-Max (V)	15
Collector-Emitter Voltage-Max (V)	8
Collector-Emitter Voltage Range-Max (V)	<20
Maximum Emitter Base Voltage (V)	2
Maximum DC Collector Current (A)	0.15
Maximum DC Collector Current Range (A)	0.12 to 0.5
Maximum Emitter Cut-Off Current (nA)	1000
Maximum Collector Cut-Off Current (nA)	1000
Minimum DC Current Gain	60@50mA@5V
Minimum DC Current Gain Range	50 to 120
Maximum Power Dissipation (mW)	400
Maximum Transition Frequency (MHz)	16000(Typ)
Maximum Noise Figure (dB)	1.8
Operating Temperature-Min	-55
Operating Temperature-Max	150
