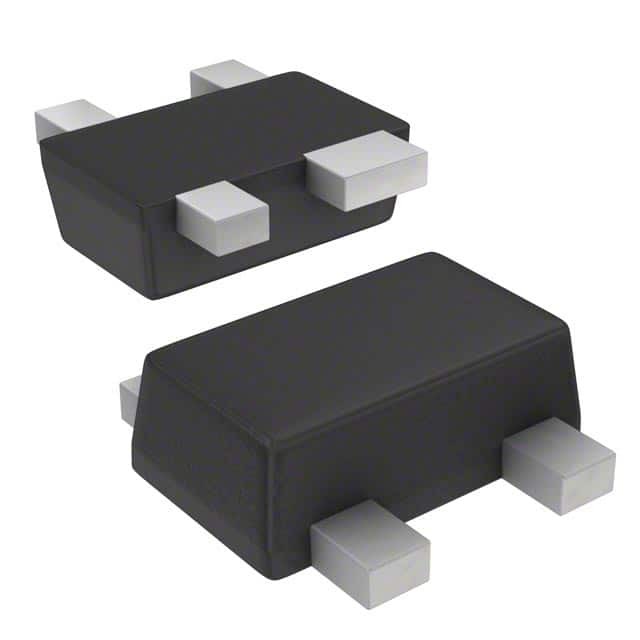

MCH4020-TL-E

SKU: 41723

Manufacturer: onsemi

Trans RF BJT NPN 8V 0.15A 400mW Automotive 4-Pin MCPH T/R

2590 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	Unknown
PPAP	Unknown
Type	NPN
Body Material	Si
Configuration	Single Dual Emitter
Number of Elements per pcs	1
Collector Base Voltage-Max (V)	15
Collector-Emitter Voltage-Max (V)	8
Collector-Emitter Voltage Range-Max (V)	<20
Maximum Emitter Base Voltage (V)	2
Maximum DC Collector Current (A)	0.15
Maximum DC Collector Current Range (A)	0.12 to 0.5
Maximum Emitter Cut-Off Current (nA)	1000
Maximum Collector Cut-Off Current (nA)	1000
Operational Bias Conditions	5V/50mA
Minimum DC Current Gain	60@50mA@5V
Minimum DC Current Gain Range	50 to 120
Maximum Power Dissipation (mW)	400
Typical Power Gain (dB)	17.5
Maximum Transition Frequency (MHz)	16000(Typ)
Maximum Noise Figure (dB)	1.8
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Original Package	MCPH
Pin Count	4
Terminal Form	Surface Mount
Package Height	0.88(Max)
Package Length	2
Package Width	1.6
PCB changed	4
