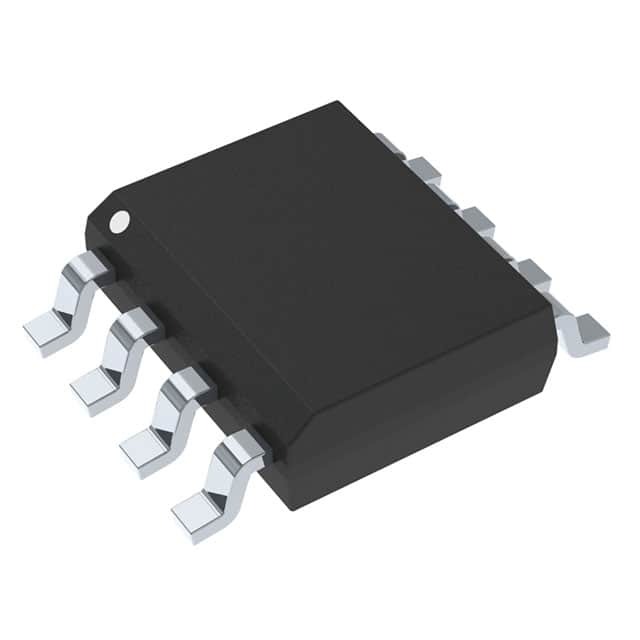

MC3488ADR2

SKU: 105263

Manufacturer: onsemi

Single Transmitter RS-232/RS-423 8-Pin SOIC N T/R

20600 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.39.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Function	Line Transmitter
Transmitter Communication Type	RS-423
Interface Standards	EIA/TIA-423
Data Transmission Topology	Multidrop
Number of Transmitters	1
Transmitter Signal Type	Single-Ended
Number of Drivers per Line	1
Driving Mode	3-State
Number of Transmitter Enables	0
Operating Temperature-Min	0
Operating Temperature-Max	70
Power Supply Type	Dual
Minimum Dual Supply Voltage (V)	±10.8
Typical Dual Supply Voltage (V)	±12
Maximum Dual Supply Voltage (V)	±13.2
Maximum Supply Current (mA)	18
Supplier Temperature Grade	Commercial
Packing Method	Tape and Reel
Pin Count	8
Original Package	SOIC N
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	1.5(Max)
Package Length	5(Max)
Package Width	4(Max)
PCB changed	8
