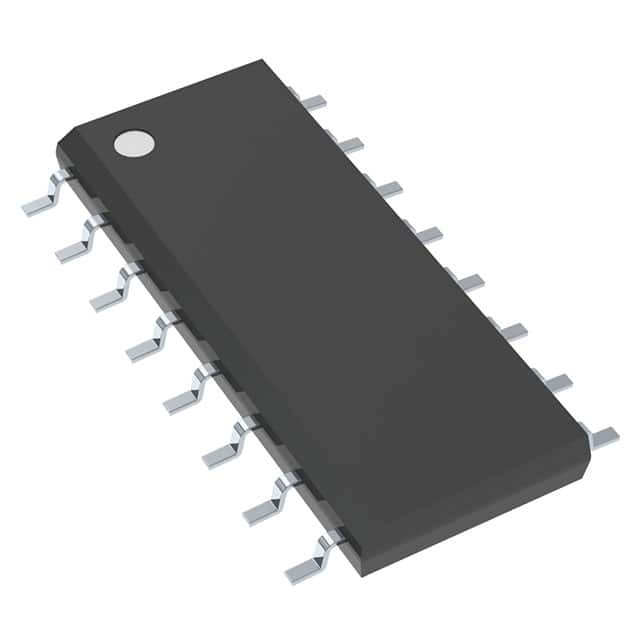

    MC14551BD

    SKU: 34579
    Manufacturer: onsemi
    Analog Multiplexer Quad 2:1 Automotive 16-Pin SOIC Rail
    2750 parts IN STOCK
    Shipped from :
    Netherlands
    Expected Ships :
    Rohs State : Need to verify

    QUANTITY

    Increments of 0 pcs
    Products specifications
    EU RoHS Not Compliant
    ECCN (US) EAR99
    Part Status Obsolete
    HTS 8542.39.00.01
    SVHC Yes
    SVHC Exceeds Threshold Yes
    Automotive Unknown
    PPAP Unknown
    Type Analog Multiplexer
    Number of Channels per Chip 4
    Number of Inputs per Chip 8
    Number of Outputs per Chip 4
    Chip Enable Signals No
    Maximum Propagation Delay Bus to Bus (ns) 40@10V
    Maximum Frequency (25°C) @ Vcc (MHz) 17(Typ)@10V
    Input Signal Type Single
    Output Signal Type Single
    Minimum Single Supply Voltage (V) 3
    Typical Single Supply Voltage (V) 15
    Maximum Single Supply Voltage (V) 18
    Maximum Low Level Output Current (mA) 25
    Maximum High Level Output Current (mA) 25
    Maximum On Resistance (Ohm) 1050@5V
    Maximum On Resistance Range (Ohm) >=1000
    Propagation Delay Test Condition (pF) 50
    Power Supply Type Single
    Maximum Power Dissipation (mW) 500
    Operating Temperature-Min -55
    Operating Temperature-Max 125
    Packing Method Rail
    Pin Count 16
    Standard Package Method SOP
    Original Package SOIC
    Terminal Form Surface Mount
    Package Height 1.5(Max)
    Package Length 10(Max)
    Package Width 4(Max)
    PCB changed 16
