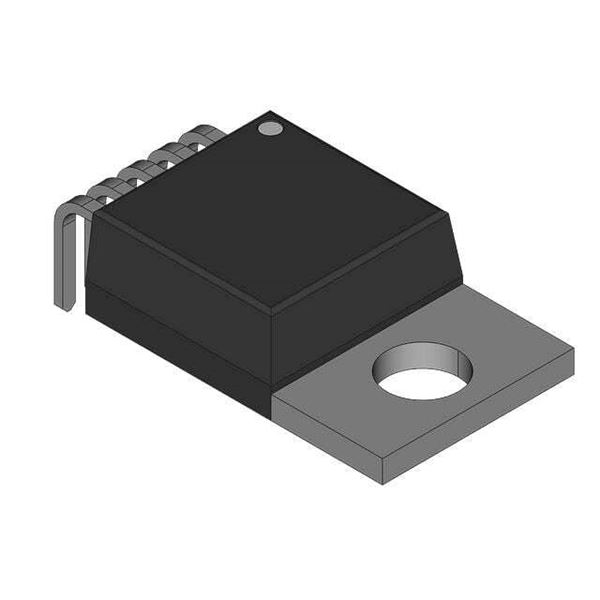

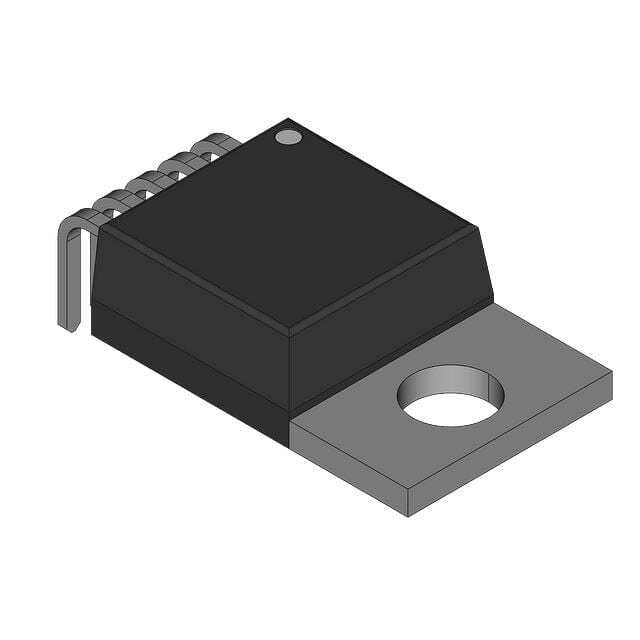

LA6500-E

SKU: 132481

Manufacturer: onsemi

Op Amp Single Power Amplifier ±18V 5-Pin(5+Tab) TO-220-H Fan-Fold

5490 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.33.00.01
SVHC	Yes
Automotive	No
PPAP	No
Type	Power Amplifier
Manufacturer Type	Power Amplifier
Number of Channels per Chip	1
Process Technology	Bipolar
Maximum Input Offset Voltage (mV)	6@±15V
Maximum Dual Supply Voltage (V)	±18
Maximum Input Offset Current (uA)	0.2@±15V
Typical Input Bias Current (uA)	0.1@±15V
Maximum Input Bias Current (uA)	0.7@±15V
Typical Output Current (mA)	1000(Max)
Power Supply Type	Dual
Maximum Power Dissipation (mW)	20000
Typical Slew Rate (V/us)	0.15@±15V
Typical Voltage Gain (dB)	100
Minimum CMRR (dB)	70
Minimum CMRR Range (dB)	70 to 71
Shut Down Support	No
Operating Temperature-Min	-20
Operating Temperature-Max	75
Packing Method	Fan-Fold
Original Package	TO-220-H
Pin Count	5
Terminal Form	Through Hole
Package Height	8.8
Package Length	10.4(Max)
Package Width	4.5
PCB changed	5
Tab	Tab
