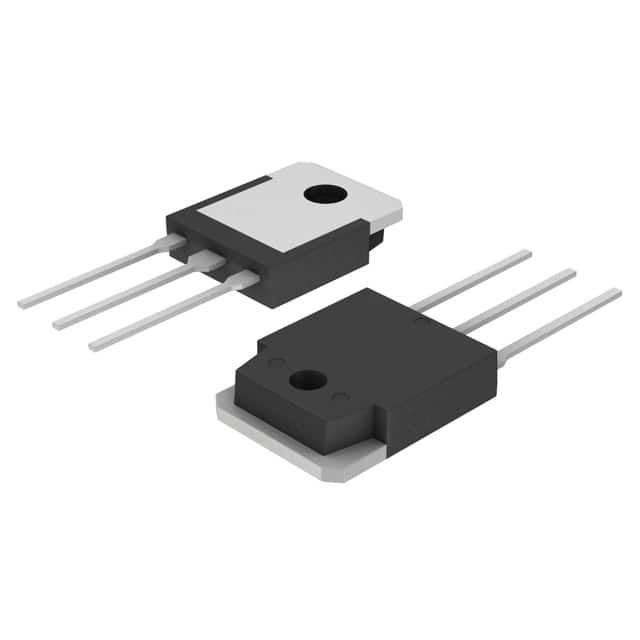

FQA9N90C

SKU: 54428

Manufacturer: onsemi

Trans MOSFET N-CH 900V 9A 3-Pin(3+Tab) TO-3PN Rail

8830 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	No
PPAP	No
Product Category	Power MOSFET
Configuration	Single
Process Technology	DMOS
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	900
Maximum Gate Source Voltage (V)	±30
Maximum Gate Threshold Voltage (V)	5
Maximum Continuous Drain Current (A)	9
Maximum Gate Source Leakage Current (nA)	100
Maximum IDSS (uA)	10
Maximum Drain Source Resistance (mOhm)	1400@10V
Typical Gate Charge @ Vgs (nC)	45@10V
Typical Gate Charge @ 10V (nC)	45
Typical Input Capacitance @ Vds (pF)	2100@25V
Maximum Power Dissipation (mW)	280000
Typical Fall Time (ns)	75
Typical Rise Time (ns)	120
Typical Turn-Off Delay Time (ns)	100
Typical Turn-On Delay Time (ns)	50
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Rail
Original Package	TO-3PN
Pin Count	3
Standard Package Method	TO-3P
Terminal Form	Through Hole
Package Height	18.9(Max)
Package Length	16.2(Max)
Package Width	5(Max)
PCB changed	3
Tab	Tab
