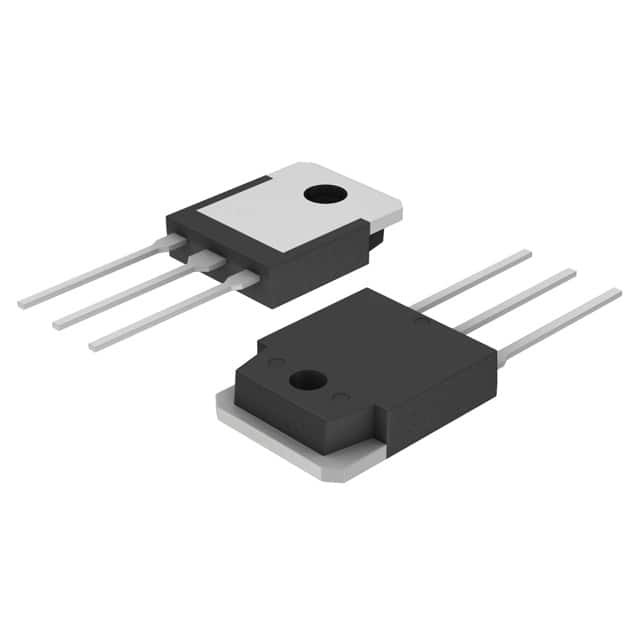

FQA11N90C

SKU: 18918

Manufacturer: onsemi

Trans MOSFET N-CH 900V 11A 3-Pin(3+Tab) TO-3PN

440 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	Unknown
Product Category	Power MOSFET
Configuration	Single
Process Technology	DMOS
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	900
Maximum Gate Source Voltage (V)	±30
Maximum Gate Threshold Voltage (V)	5
Maximum Continuous Drain Current (A)	11
Maximum Gate Source Leakage Current (nA)	100
Maximum IDSS (uA)	10
Maximum Drain Source Resistance (mOhm)	1400@10V
Typical Gate Charge @ Vgs (nC)	60@10V
Typical Gate Charge @ 10V (nC)	60
Typical Input Capacitance @ Vds (pF)	2530@25V
Maximum Power Dissipation (mW)	300000
Typical Fall Time (ns)	85
Typical Rise Time (ns)	130
Typical Turn-Off Delay Time (ns)	130
Typical Turn-On Delay Time (ns)	60
Operating Temperature-Min	-55
Operating Temperature-Max	150
Original Package	TO-3PN
Pin Count	3
Standard Package Method	TO-3P
Terminal Form	Through Hole
Package Height	18.9(Max)
Package Length	16.2(Max)
Package Width	5(Max)
PCB changed	3
Tab	Tab
