FODM1009

SKU: 58802

Manufacturer: onsemi

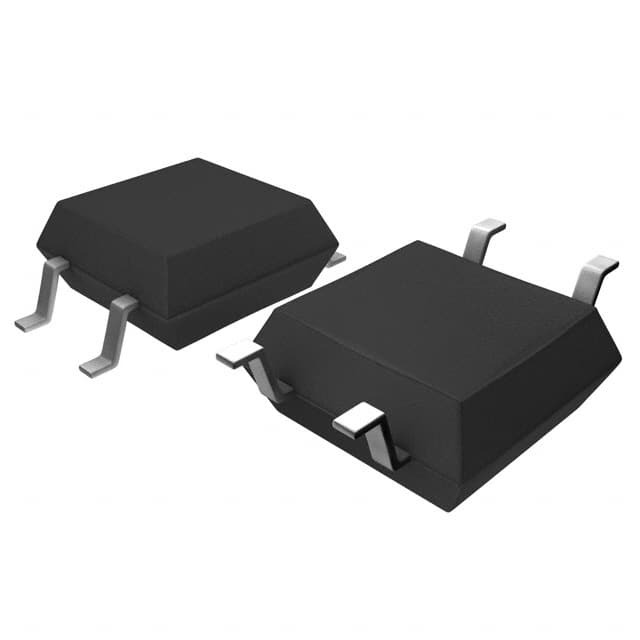

Optocoupler DC-IN 1-CH Transistor 4-Pin LSOP Tube

1390 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.40.80.00
Automotive	No
PPAP	No
Input Type	DC
Output Device	Transistor
Number of Channels per Chip	1
Operating Temperature-Min	-40
Operating Temperature-Max	110
Maximum Forward Voltage (V)	1.6
Maximum Current Transfer Ratio (%)	400
Maximum Collector-Emitter Saturation Voltage (mV)	300
Maximum Power Dissipation (mW)	100
Maximum Reverse Voltage (V)	6
Typical Forward Voltage (V)	1.4
Maximum Rise Time (us)	18
Maximum Fall Time (us)	18
Maximum Forward Current (mA)	50
Packing Method	Tube
Minimum Current Transfer Ratio (%)	200
Current Transfer Ratio Test Current (mA)	5
Typical Rise Time (us)	5.7
Typical Fall Time (us)	8.5
Pin Count	4
Original Package	LSOP
Terminal Form	Surface Mount
