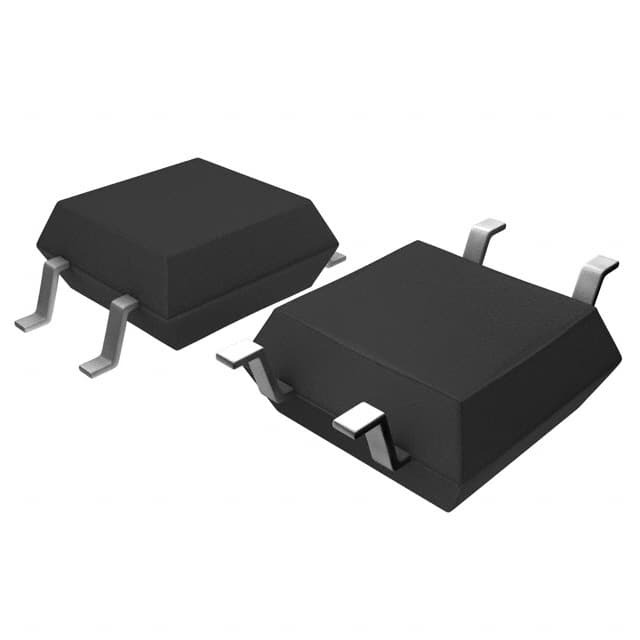

FODM1007

SKU: 51756

Manufacturer: onsemi

Optocoupler DC-IN 1-CH Transistor 4-Pin LSOP Tube

1350 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.40.80.00
Automotive	No
PPAP	No
Input Type	DC
Output Device	Transistor
Number of Channels per Chip	1
Minimum Isolation Voltage (Vrms)	5000
Operating Temperature-Min	-40
Operating Temperature-Max	110
Maximum Forward Voltage (V)	1.6
Maximum Current Transfer Ratio (%)	160
Maximum Collector Current (mA)	50
Maximum Collector-Emitter Saturation Voltage (mV)	300
Maximum Power Dissipation (mW)	150
Maximum Reverse Voltage (V)	6
Typical Forward Voltage (V)	1.4
Maximum Rise Time (us)	18
Maximum Fall Time (us)	18
Maximum Forward Current (mA)	50
Packing Method	Tube
Minimum Collector Emitter Voltage (V)	70
Minimum Current Transfer Ratio (%)	80
Current Transfer Ratio Test Current (mA)	5
Typical Rise Time (us)	5.7
Typical Fall Time (us)	8.5
Pin Count	4
Original Package	LSOP
Terminal Form	Surface Mount
