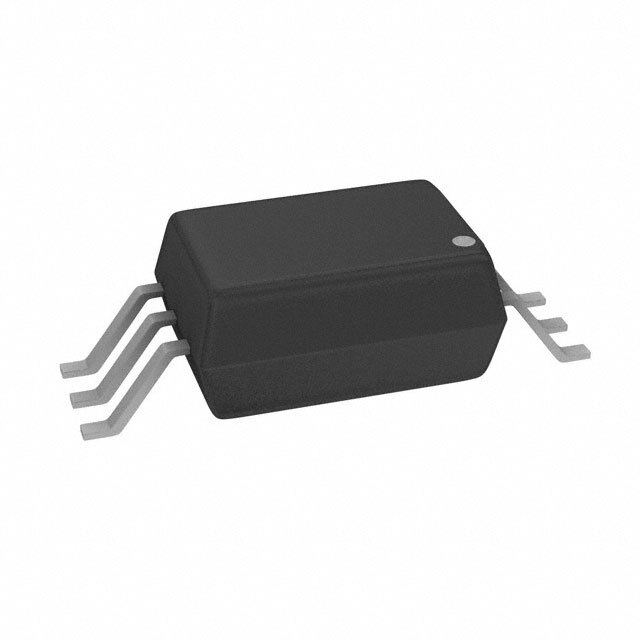

FOD8342T

SKU: 115224

Manufacturer: onsemi

Optocoupler Drive Push-Pull 1-CH 30V 6-Pin SOIC W Tube

1400 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.40.80.00
Automotive	No
PPAP	No
Number of Channels per Chip	1
Minimum Isolation Voltage (Vrms)	5000
Minimum Common Mode Rejection (kV/us)	20
Maximum Rise Time (ns)	38
Maximum Fall Time (ns)	24
Maximum Propagation Delay Time (tPLH) (ns)	210
Maximum Propagation Delay Time (tPHL) (ns)	210
Maximum Pulse Width Distortion (ns)	65
Output Type	Push-Pull
Maximum Peak Output Current (A)	3
Minimum Forward Voltage (V)	1.1
Maximum Forward Voltage (V)	1.8
Operating Supply Voltage-Max (V)	30
Maximum Power Dissipation (mW)	500
Operating Temperature-Min	-40
Operating Temperature-Max	100
Packing Method	Tube
Original Package	SOIC W
Pin Count	6
Terminal Form	Surface Mount
Package Height	3.18
Package Length	4.5
Package Width	6.81
