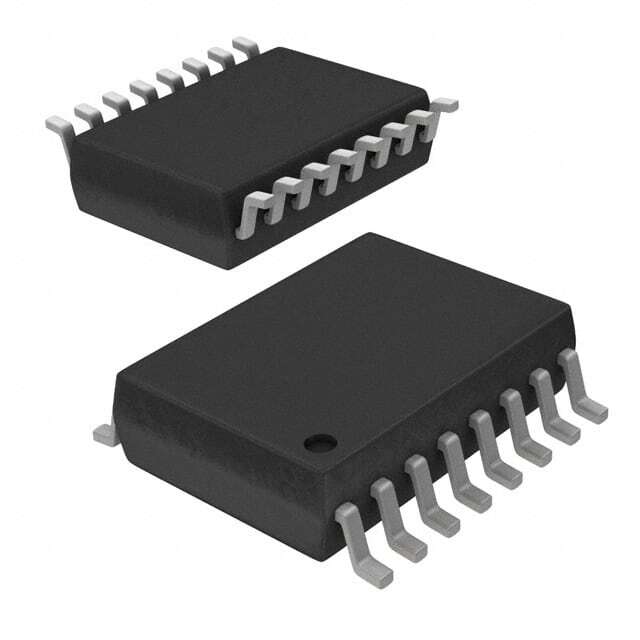

FOD8334

SKU: 79816

Manufacturer: onsemi

Optocoupler Drive Totem-Pole 15V 1500V 16-Pin SOIC W Tube

2780 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.40.80.00
Automotive	No
PPAP	No
Minimum Isolation Voltage (Vrms)	4243
Minimum Common Mode Rejection (kV/us)	35
Maximum Rise Time (ns)	50(Typ)
Maximum Fall Time (ns)	50(Typ)
Maximum Propagation Delay Time (tPLH) (ns)	150
Maximum Propagation Delay Time (tPHL) (ns)	150
Maximum Pulse Width Distortion (ns)	100
Output Type	Totem-Pole
Maximum Peak Output Current (A)	4
Minimum Forward Voltage (V)	1.1
Maximum Forward Voltage (V)	1.8
Common Mode Voltage (V)	1500
Operating Supply Voltage-Max (V)	15
Maximum Working Insulation Voltage (Vp)	1414(Min)
Maximum Power Dissipation (mW)	600
Operating Temperature-Min	-40
Operating Temperature-Max	100
Original Package	SOIC W
Pin Count	16
Terminal Form	Surface Mount
Package Height	2.35
Package Length	10.3
Package Width	7.5
