FCA20N60

SKU: 153347

Manufacturer: onsemi

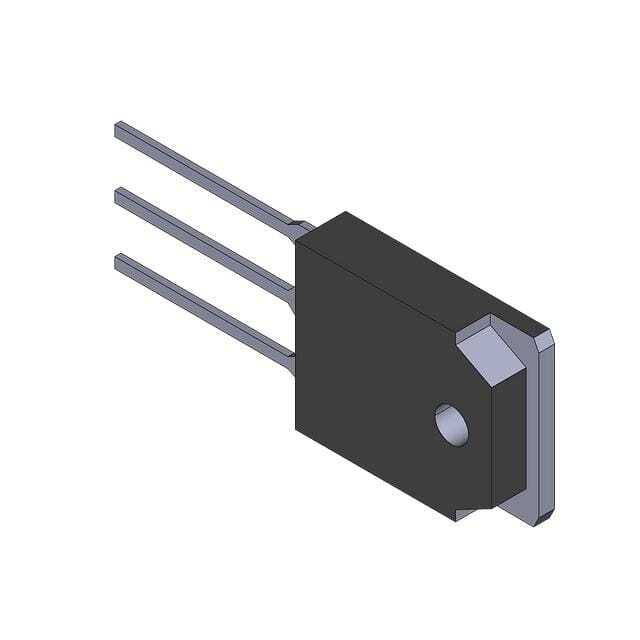

Trans MOSFET N-CH 600V 20A 3-Pin(3+Tab) TO-3P Tube

1280 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	NRND
HTS	8541.29.00.95
SVHC	Yes
Automotive	No
PPAP	No
Product Category	Power MOSFET
Configuration	Single
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	600
Maximum Gate Source Voltage (V)	±30
Maximum Continuous Drain Current (A)	20
Maximum Drain Source Resistance (mOhm)	190@10V
Typical Gate Charge @ Vgs (nC)	75@10V
Typical Gate Charge @ 10V (nC)	75
Typical Input Capacitance @ Vds (pF)	2370@25V
Maximum Power Dissipation (mW)	208000
Typical Fall Time (ns)	65
Typical Rise Time (ns)	140
Typical Turn-Off Delay Time (ns)	230
Typical Turn-On Delay Time (ns)	62
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tube
Original Package	TO-3P
Pin Count	3
Standard Package Method	TO-3P
Terminal Form	Through Hole
Package Height	18.9(Max)
Package Length	16.2(Max)
Package Width	5(Max)
PCB changed	3
Tab	Tab
