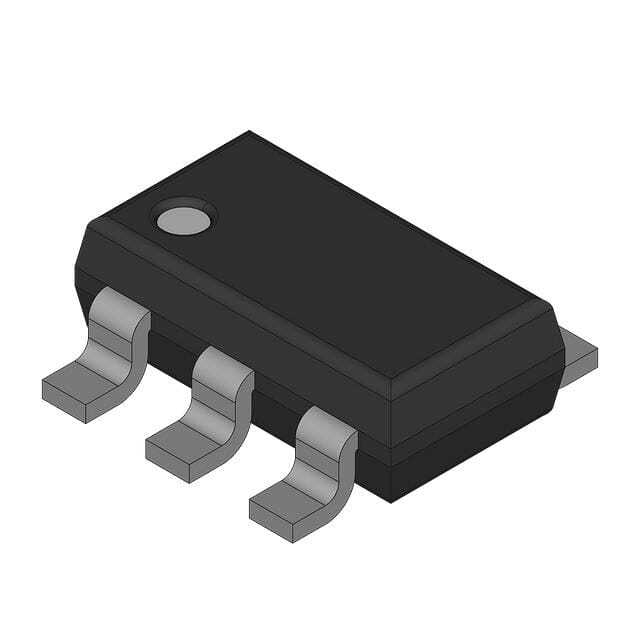

CPH6021-TL-H

SKU: 138692

Manufacturer: onsemi

Trans RF BJT NPN 12V 0.1A 700mW 6-Pin CPH T/R

2200 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	LTB
Automotive	No
PPAP	No
Type	NPN
Body Material	Si
Configuration	Single Quad Collector
Number of Elements per pcs	1
Collector Base Voltage-Max (V)	20
Collector-Emitter Voltage-Max (V)	12
Collector-Emitter Voltage Range-Max (V)	<20
Maximum Emitter Base Voltage (V)	2
Maximum DC Collector Current (A)	0.1
Maximum DC Collector Current Range (A)	0.06 to 0.12
Maximum Emitter Cut-Off Current (nA)	1000
Maximum Collector Cut-Off Current (nA)	1000
Operational Bias Conditions	5V/30mA
Minimum DC Current Gain	60@50mA@5V
Minimum DC Current Gain Range	50 to 120
Maximum Power Dissipation (mW)	700
Maximum Transition Frequency (MHz)	10000(Typ)
Maximum Noise Figure (dB)	1.8
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Original Package	CPH
Pin Count	6
Standard Package Method	SOT-23
Terminal Form	Surface Mount
Package Height	0.9
Package Length	2.9
Package Width	1.6
PCB changed	6
