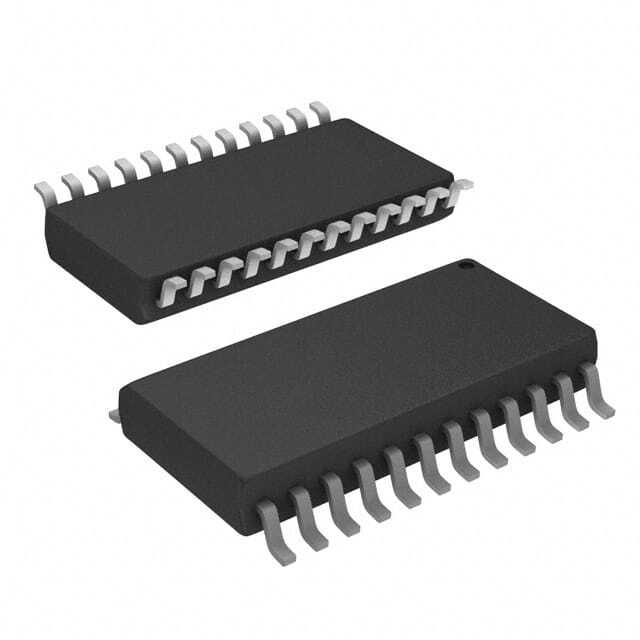

74F675ASC

SKU: 58266

Manufacturer: onsemi

Shift Register Single 16-Bit Serial to Serial/Parallel 24-Pin SOIC W Rail

2970 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.39.00.01
Automotive	No
PPAP	No
Logic Family	F
Logic Function	Shift Register
Operation Mode	Serial to Serial/Parallel
Number of Elements per pcs	1
Number of Element Inputs	1
Number of Count Input Enables	0
Number of Selection Inputs per Element	2
Number of Element Outputs	17
Number of Stages	16
Direction Type	Uni-Directional
Triggering Type	Negative-Edge
Maximum Propagation Delay Time @ Maximum CL (ns)	13.5@5V
Absolute Propagation Delay Time (ns)	15
Process Technology	Bipolar
Output Type	3-State
Operating Supply Voltage-Min (V)	4.5
Typical Operating Supply Voltage (V)	5
Operating Supply Voltage-Max (V)	5.5
Propagation Delay Test Condition (pF)	50
Parallel Enable Input	No
Terminal Count Output	No
Operating Temperature-Min	0
Operating Temperature-Max	70
Packing Method	Rail
Original Package	SOIC W
Pin Count	24
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	2.35(Max)
Package Length	15.4
Package Width	7.5
PCB changed	24
