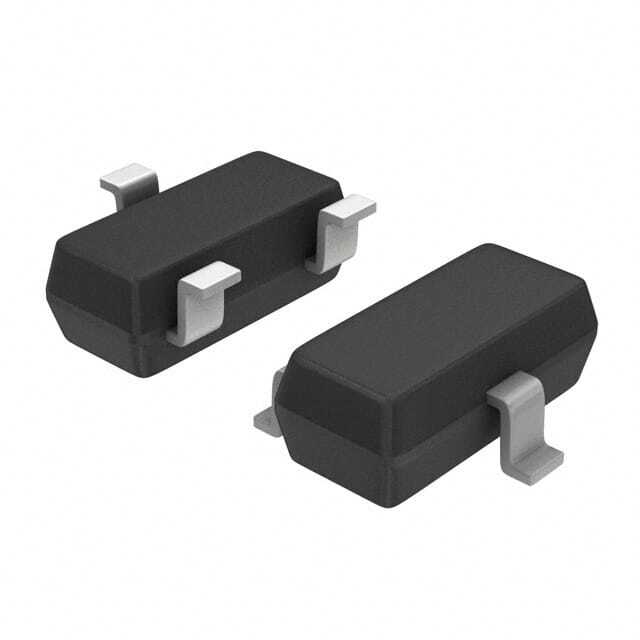

2SK536-TB-E

SKU: 137524

Manufacturer: onsemi

Trans MOSFET N-CH 50V 0.1A 3-Pin SC-59 T/R

81340 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8541.21.00.95
Automotive	No
PPAP	No
Product Category	Small Signal
Configuration	Single
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	50
Maximum Gate Source Voltage (V)	±12
Maximum Continuous Drain Current (A)	0.1
Maximum Gate Source Leakage Current (nA)	10
Maximum IDSS (uA)	1
Maximum Drain Source Resistance (mOhm)	20000(Typ)@10V
Typical Input Capacitance @ Vds (pF)	15@10V
Maximum Power Dissipation (mW)	200
Operating Temperature-Min	-55
Operating Temperature-Max	125
Packing Method	Tape and Reel
Original Package	SC-59
Pin Count	3
Standard Package Method	SC
Terminal Form	Surface Mount
Package Height	1.25(Max)
Package Length	3.05(Max)
Package Width	1.65(Max)
PCB changed	3
