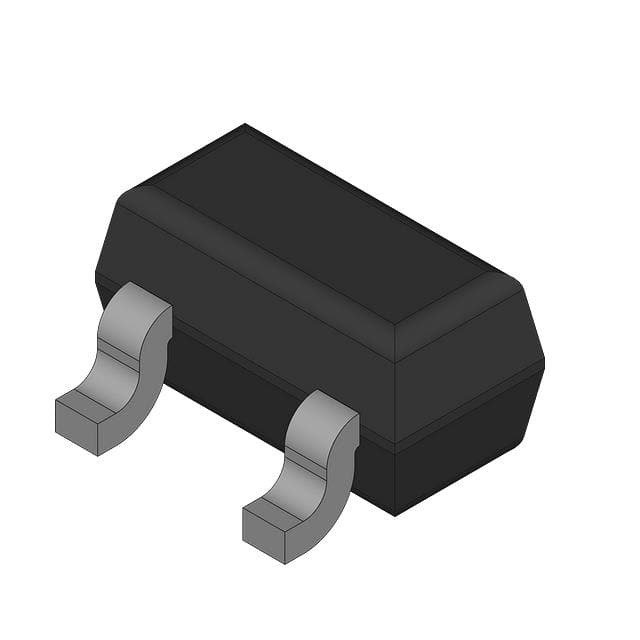

2N7002T

SKU: 5493

Manufacturer: onsemi

Trans MOSFET N-CH 60V 0.115A 3-Pin SOT-523FL T/R

45720 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.21.00.95
Automotive	No
PPAP	No
Product Category	Small Signal
Configuration	Single
Process Technology	TMOS
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	60
Maximum Gate Source Voltage (V)	±20
Maximum Gate Threshold Voltage (V)	2
Operating Junction Temperature (°C)	-55 to 150
Maximum Continuous Drain Current (A)	0.115
Maximum Gate Source Leakage Current (nA)	10
Maximum IDSS (uA)	1
Maximum Drain Source Resistance (mOhm)	2000@10V
Typical Input Capacitance @ Vds (pF)	37.8@25V
Typical Reverse Transfer Capacitance @ Vds (pF)	6.5@25V
Minimum Gate Threshold Voltage (V)	1
Typical Output Capacitance (pF)	12.4
Maximum Power Dissipation (mW)	200
Typical Turn-Off Delay Time (ns)	12.5
Typical Turn-On Delay Time (ns)	5.85
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Maximum Positive Gate Source Voltage (V)	20
Maximum Pulsed Drain Current @ TC=25°C (A)	0.8
Maximum Junction Ambient Thermal Resistance on PCB (°C/W)	625
Typical Gate Threshold Voltage (V)	1.76
Pin Count	3
Standard Package Method	SOT
Original Package	SOT-523FL
Terminal Form	Surface Mount
Package Height	0.78(Max)
Package Length	1.7(Max)
Package Width	0.98(Max)
PCB changed	3
