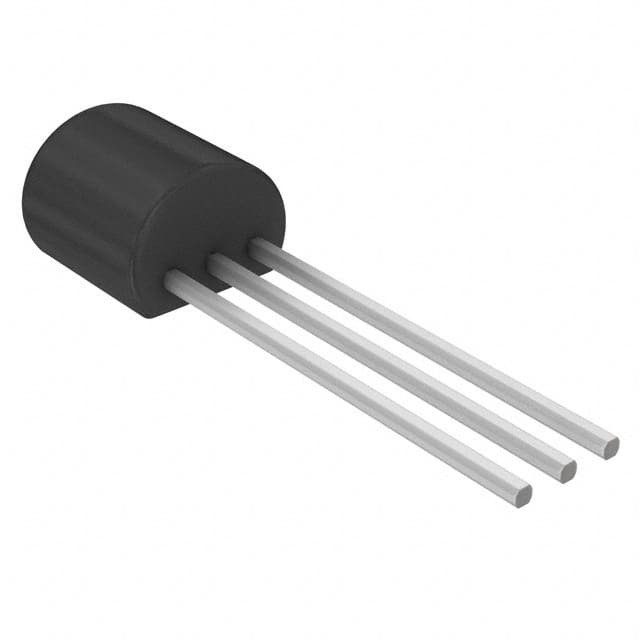

2N5486

SKU: 6439

Manufacturer: onsemi

Trans RF FET N-CH 25V 0.03A 3-Pin TO-92 Bulk

23290 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8541.21.00.95
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Configuration	Single
Type	JFET
Channel Mode	Depletion
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	25
Maximum Gate Source Voltage (V)	25
Maximum Continuous Drain Current (A)	0.03
Maximum Gate Source Leakage Current (nA)	1
Maximum IDSS (uA)	20000
Typical Input Capacitance @ Vds (pF)	5(Max)@15V
Typical Reverse Transfer Capacitance @ Vds (pF)	1(Max)@15V
Typical Output Capacitance @ Vds (pF)	2(Max)@15V
Typical Forward Transconductance (S)	0.008(Max)
Maximum Power Dissipation (mW)	350
Operating Temperature-Min	-65
Operating Temperature-Max	150
Packing Method	Bulk
Original Package	TO-92
Pin Count	3
Standard Package Method	TO-92
Terminal Form	Through Hole
Package Height	5.33(Max)
Package Length	5.2(Max)
Package Width	4.19(Max)
PCB changed	3
