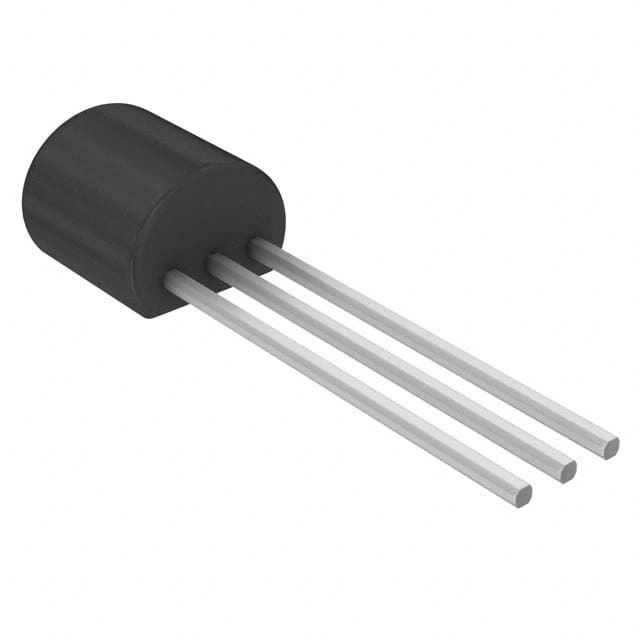

2N5485

SKU: 7571

Manufacturer: onsemi

Trans RF FET N-CH 3-Pin TO-92

4680 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
Part Status	Obsolete
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Configuration	Single
Type	JFET
Channel Type	N
Number of Elements per pcs	1
Maximum Gate Source Voltage (V)	-25
Maximum Gate Source Leakage Current (nA)	1
Maximum IDSS (uA)	10000
Typical Input Capacitance @ Vds (pF)	5(Max)@15V
Typical Reverse Transfer Capacitance @ Vds (pF)	1(Max)@15V
Typical Output Capacitance @ Vds (pF)	2(Max)@15V
Typical Forward Transconductance (S)	0.007(Max)
Maximum Power Dissipation (mW)	350
Original Package	TO-92
Pin Count	3
Standard Package Method	TO-92
Terminal Form	Through Hole
Package Height	5.33(Max)
Package Length	5.2(Max)
Package Width	4.19(Max)
PCB changed	3
