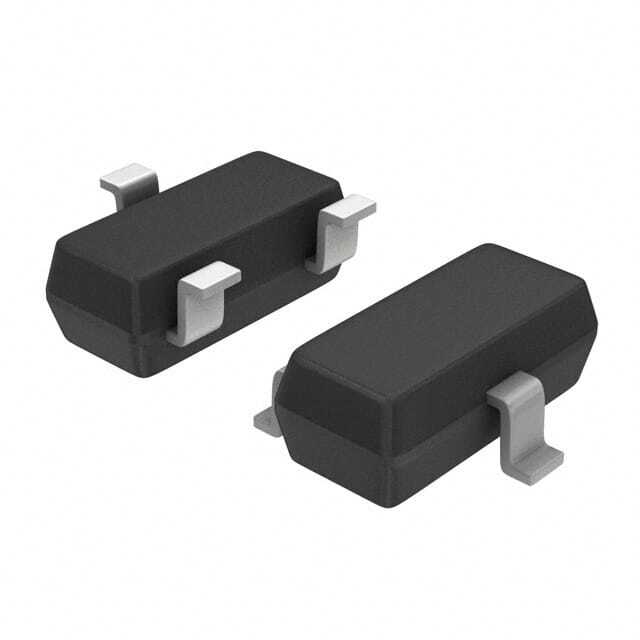

1HP04CH-TL-W

SKU: 8381

Manufacturer: onsemi

Trans MOSFET P-CH 100V 0.17A 3-Pin CPH T/R

9780 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8541.21.00.95
Automotive	No
PPAP	No
Product Category	Small Signal
Configuration	Single
Channel Mode	Enhancement
Channel Type	P
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	100
Maximum Gate Source Voltage (V)	±20
Maximum Gate Threshold Voltage (V)	2.6
Maximum Continuous Drain Current (A)	0.17
Maximum Gate Source Leakage Current (nA)	10000
Maximum IDSS (uA)	1
Maximum Drain Source Resistance (mOhm)	18000@10V
Typical Gate Charge @ Vgs (nC)	0.9@10V
Typical Gate Charge @ 10V (nC)	0.9
Typical Input Capacitance @ Vds (pF)	14@20V
Maximum Power Dissipation (mW)	600
Typical Fall Time (ns)	81
Typical Rise Time (ns)	18
Typical Turn-Off Delay Time (ns)	200
Typical Turn-On Delay Time (ns)	21
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Original Package	CPH
Pin Count	3
Standard Package Method	SOT
Terminal Form	Surface Mount
Package Height	0.9
Package Length	2.9
Package Width	1.6
PCB changed	3
