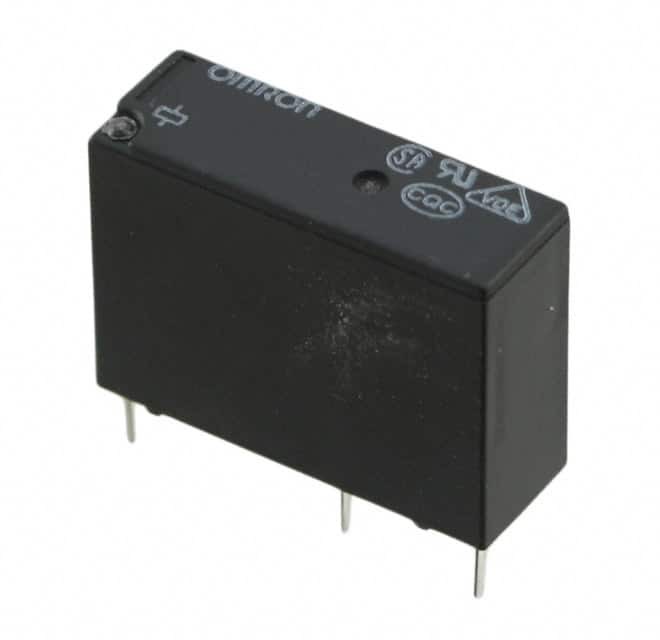

G5NB-1A-DC12 Omron

G5NB-1A-DC12

SKU: 93929

Manufacturer: Omron

Power Relay 12VDC 3A SPST-NO(20.5x7.2x15.3)mm THT

Download sample

Request Free Samples

3030 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.41.00.60
Automotive	No
PPAP	No
Contact Arrangement	SPST-NO
Contact Form	1 Form A
DC Coil Voltage (V)	12
Coil Current (mA)	16.7
Coil Resistance (Ohm)	720
Insulation Resistance (MOhm)	1000(Min)
Maximum Contact Resistance (mOhm)	100
Maximum Pick-Up Voltage	9VDC
Minimum Dropout Voltage	1.2VDC
Maximum AC Switching Voltage (V)	250
Maximum DC Switching Voltage (V)	30
Maximum Switching Current (A)	3
Operate Time (ms)	10
Release Time (ms)	10
Electrical Life (Operations)	200000
Mechanical Life (Operations)	5000000
LED Indicator	No
Push to Test Button	No
Coil Suppression Diode	No
Relay Construction	Non-Latching
Terminal Form	Through Hole
Terminal Form	PC Pin
Number of Terminals	4
Operating Temperature-Min	-40
Operating Temperature-Max	70
Product Weight (g)	4
Length (mm)	20.5
Depth (mm)	7.2
