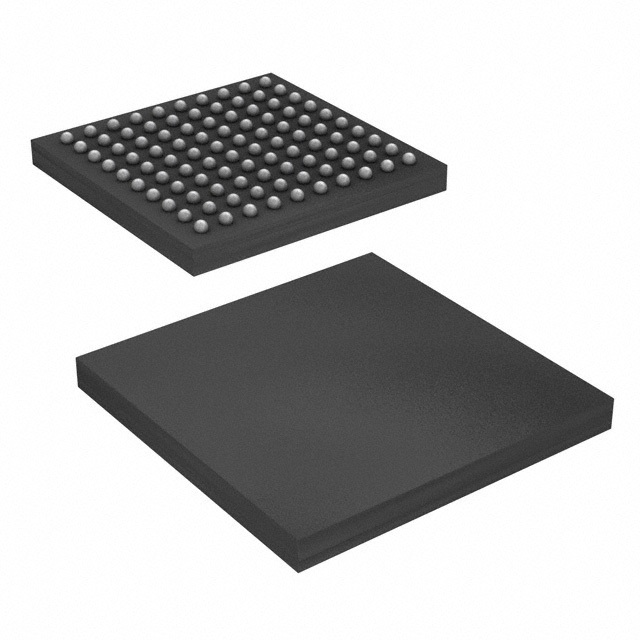

SPC5746CSK1MMH6

SKU: 130065

Manufacturer: NXP Semiconductors

MCU 32-bit e200z2/e200z4 RISC 3MB Flash 5V Automotive 100-Pin MAP-BGA Tray

3930 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	5A992C
Part Status	Active
HTS	8542.31.00.01
SVHC	Yes
Automotive	Yes
PPAP	Unknown
Family Name	MPC57xx
Instruction Set Architecture	RISC
Device Core	e200z4
Core Architecture	e200
Maximum CPU Frequency (MHz)	160
Maximum Clock Rate (MHz)	160
Data Bus Width (bit)	32
Program Memory Type	FLASH
Program Memory Size	3MB
RAM Size	384KB
Programmability	Yes
Interface Type	CAN/Ethernet/I2C/I2S/SPI
Number of I/Os	246
No. of Timers	4
Number of ADCs	Dual
ADC Channels	68/31
ADC Resolution (bit)	10/12
USART	0
UART	0
USB	0
SPI	8
I2C	4
I2S	3
CAN	8
Ethernet	2
Watchdog	4
Analog Comparators	3
Parallel Master Port	No
Real Time Clock	No
Special Features	CAN Controller
Operating Supply Voltage-Min (V)	4.5
Typical Operating Supply Voltage (V)	5
Operating Supply Voltage-Max (V)	5.5
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tray
Original Package	MAP-BGA
Pin Count	100
Terminal Form	Surface Mount
Package Height	0.98(Max)
Package Length	11
Package Width	11
