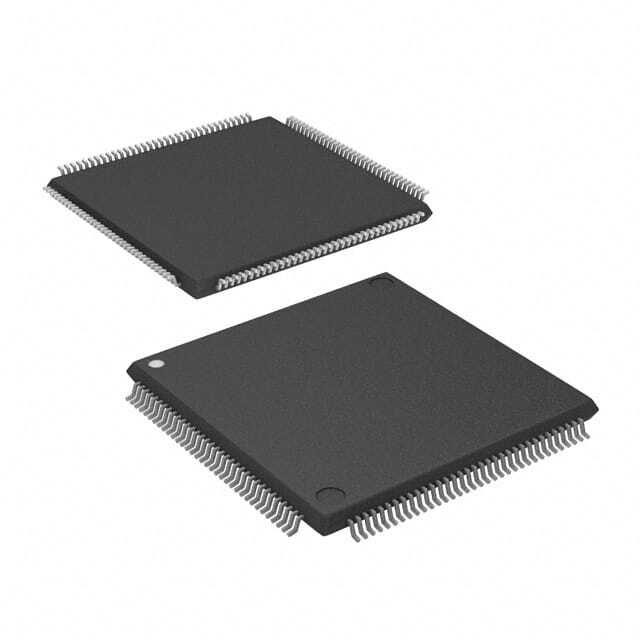

SPC5744PK1AMLQ5

SKU: 31043

Manufacturer: NXP Semiconductors

MCU 32-bit e200z4 2.5MB Flash 3.3V Automotive 144-Pin LQFP Tray

3710 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A991A2
Part Status	Active
HTS	8542.31.00.01
SVHC	Yes
Automotive	Yes
PPAP	Unknown
Family Name	MPC5xx
Instruction Set Architecture	Harvard
Device Core	e200z4
Core Architecture	e200
Maximum CPU Frequency (MHz)	150
Maximum Clock Rate (MHz)	150
Data Bus Width (bit)	32
Program Memory Type	FLASH
Program Memory Size	2.5MB
RAM Size	384KB
Programmability	Yes
Interface Type	CAN/Ethernet/SPI/UART
Number of I/Os	79
No. of Timers	4
Number of ADCs	Quad
ADC Channels	16/16/16/16
ADC Resolution (bit)	12/12/12/12
USART	0
UART	2
USB	0
SPI	4
I2C	0
I2S	0
CAN	3
Ethernet	1
Operating Supply Voltage-Min (V)	3.15
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	3.6
Maximum Power Dissipation (mW)	1600
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Automotive
Packing Method	Tray
Original Package	LQFP
Pin Count	144
Standard Package Method	QFP
Terminal Form	Surface Mount
Package Height	1.45(Max)
Package Length	20
Package Width	20
PCB changed	144
