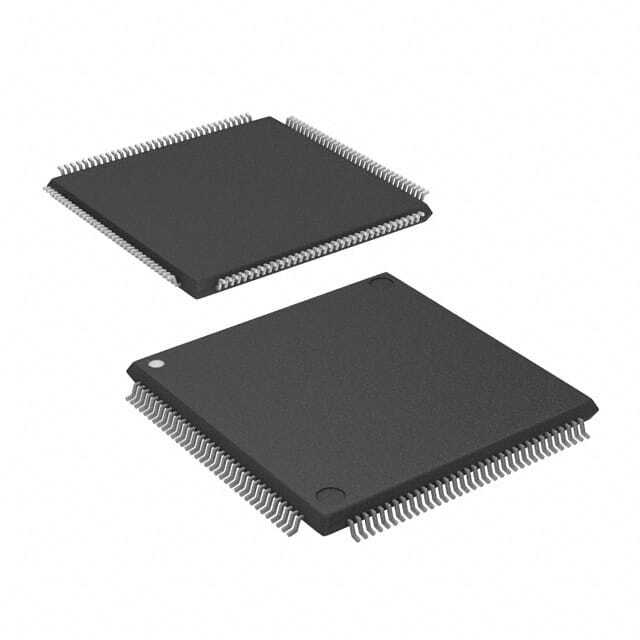

SPC5604SF2VLQ6

SKU: 23916

Manufacturer: NXP Semiconductors

MCU 32-bit e200z0h RISC 512KB Flash 3.3V/5V Automotive 144-Pin LQFP Tray

4360 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A991.a.2
Part Status	Active
HTS	8542.31.00.01
SVHC	Yes
Automotive	Yes
PPAP	Unknown
Family Name	MPC56xx
Instruction Set Architecture	RISC
Device Core	e200z0h
Core Architecture	e200
Maximum CPU Frequency (MHz)	64
Maximum Clock Rate (MHz)	64
Data Bus Width (bit)	32
Program Memory Type	FLASH
Program Memory Size	512KB
RAM Size	48KB
Programmability	Yes
Interface Type	CAN/I2C/SCI/SPI
Number of I/Os	105
No. of Timers	3
Number of ADCs	Single
ADC Channels	16
ADC Resolution (bit)	10
LCD Segments	160
USART	0
UART	0
USB	0
SPI	2
I2C	2
I2S	0
CAN	2
Ethernet	0
Watchdog	1
Analog Comparators	4
Special Features	CAN Controller,LCD Controller
Operating Supply Voltage-Min (V)	4.5
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	3.6
Operating Temperature-Min	-40
Operating Temperature-Max	105
Packing Method	Tray
Original Package	LQFP
Pin Count	144
Standard Package Method	QFP
Terminal Form	Surface Mount
Package Height	1.45(Max)
Package Length	20
Package Width	20
PCB changed	144
