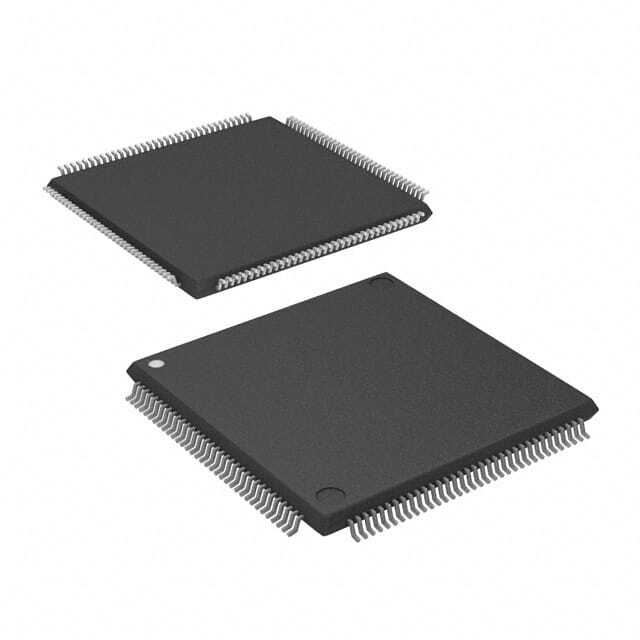

SPC5604PGF1VLQ6

SKU: 23915

Manufacturer: NXP Semiconductors

MCU 32-bit e200z0h RISC 512KB Flash 3.3V/5V Automotive 144-Pin LQFP Tray

2890 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A991A2
Part Status	Active
HTS	8542.31.00.01
SVHC	Yes
Automotive	Yes
PPAP	Unknown
Family Name	MPC56xx
Instruction Set Architecture	RISC
Device Core	e200z0h
Core Architecture	e200
Maximum CPU Frequency (MHz)	64
Maximum Clock Rate (MHz)	64
Data Bus Width (bit)	32
Program Memory Type	FLASH
Program Memory Size	512KB
RAM Size	40KB
Data Memory Size	64KB
Programmability	Yes
Interface Type	CAN/SPI
Number of I/Os	108
No. of Timers	4
PWM	1
Number of ADCs	Dual
ADC Channels	15/15
ADC Resolution (bit)	10/10
Number of DACs	Dual
DAC Resolution (bit)	12/12
USART	0
UART	0
USB	0
SPI	4
I2C	0
I2S	0
CAN	2
Ethernet	0
Watchdog	1
Analog Comparators	2
Special Features	CAN Controller
Operating Supply Voltage-Min (V)	3
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	3.6
Operating Temperature-Min	-40
Operating Temperature-Max	105
Supplier Temperature Grade	Automotive
Packing Method	Tray
Original Package	LQFP
Pin Count	144
Standard Package Method	QFP
Terminal Form	Surface Mount
Package Height	1.45(Max)
Package Length	20
Package Width	20
PCB changed	144
