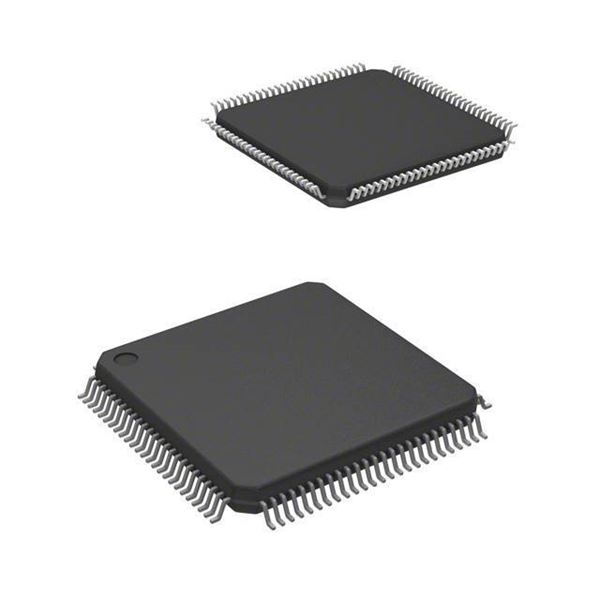

S9S12G128AMLL

SKU: 134497

Manufacturer: NXP Semiconductors

MCU 16-bit HCS12 CISC 128KB Flash

1230 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A991A2
Part Status	Active
HTS	8542.31.00.01
Automotive	Yes
PPAP	Unknown
Family Name	S12
Instruction Set Architecture	CISC
Device Core	S12
Core Architecture	S12
Maximum CPU Frequency (MHz)	25
Maximum Clock Rate (MHz)	25
Data Bus Width (bit)	16
Program Memory Type	FLASH
Program Memory Size	128KB
RAM Size	8KB
Maximum Expanded Memory Size	256KB
Programmability	Yes
Interface Type	CAN/SCI/SPI
Number of I/Os	86
No. of Timers	1
PWM	8
Number of ADCs	Single
ADC Channels	12
ADC Resolution (bit)	10
USART	0
UART	0
USB	0
SPI	3
I2C	0
I2S	0
CAN	1
Ethernet	0
Special Features	CAN Controller
Operating Supply Voltage-Min (V)	3.13
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	5.5
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Automotive
Packing Method	Tray
Original Package	LQFP
Pin Count	100
Terminal Form	Surface Mount
Package Height	1.5(Max)
Package Length	14
Package Width	14
