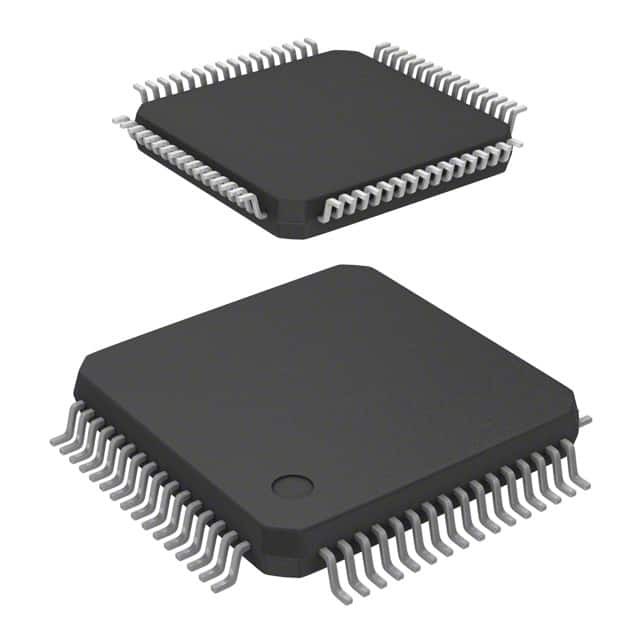

S9S12G128AMLH

SKU: 84902

Manufacturer: NXP Semiconductors

MCU 16-bit S12 CISC 128KB Flash 3.3V/5V Automotive 64-Pin LQFP Tray

1020 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.31.00.01
Automotive	Yes
PPAP	Unknown
Family Name	S12
Instruction Set Architecture	CISC
Device Core	S12
Core Architecture	S12
Maximum CPU Frequency (MHz)	25
Maximum Clock Rate (MHz)	25
Data Bus Width (bit)	16
Program Memory Type	FLASH
Program Memory Size	128KB
RAM Size	8KB
Maximum Expanded Memory Size	256KB
Programmability	Yes
Interface Type	CAN/SCI/SPI
Number of I/Os	54
No. of Timers	1
Number of ADCs	Single
ADC Channels	12
ADC Resolution (bit)	10
USART	0
UART	0
USB	0
SPI	3
I2C	0
I2S	0
CAN	1
Ethernet	0
Special Features	CAN Controller
Operating Supply Voltage-Min (V)	3.13
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	5.5
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tray
Original Package	LQFP
Pin Count	64
Standard Package Method	QFP
Terminal Form	Surface Mount
Package Height	1.45(Max)
Package Length	10
Package Width	10
PCB changed	64
