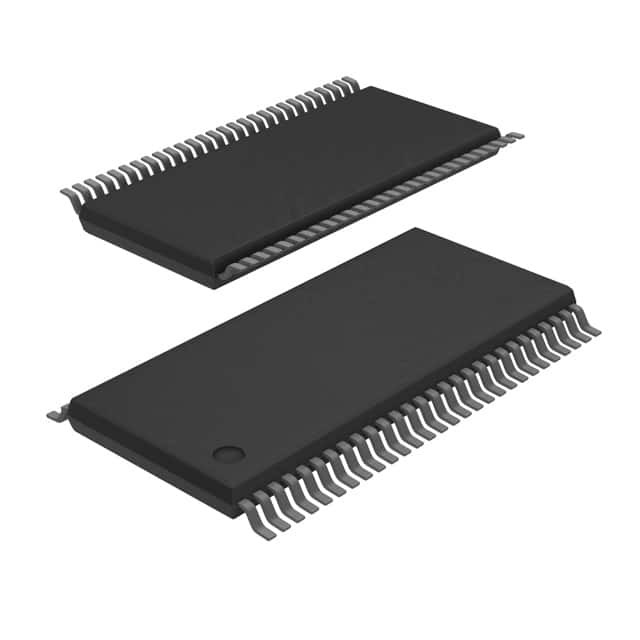

PCA8546ATT/AJ

SKU: 16701

Manufacturer: NXP Semiconductors

Dot Matrix Display LCD Driver 2.5V/3.3V/5V Automotive 56-Pin TSSOP T/R

1540 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.39.00.01
Automotive	Yes
PPAP	Unknown
Number of Segments	176
Maximum Clock Frequency (MHz)	0.4
Interface Type	I2C
Operating Supply Voltage-Min (V)	1.8
Operating Supply Voltage-Max (V)	5.5
Typical Operating Supply Voltage (V)	2.5
Maximum Supply Current (mA)	0.06
Maximum Power Dissipation (mW)	400
Operating Temperature-Min	-40
Operating Temperature-Max	95
Supplier Temperature Grade	Extended
Packing Method	Tape and Reel
Standard Package Method	SOP
Pin Count	56
Original Package	TSSOP
Terminal Form	Surface Mount
Package Height	1.05(Max)
Package Length	14.1(Max)
Package Width	6.2(Max)
PCB changed	56
