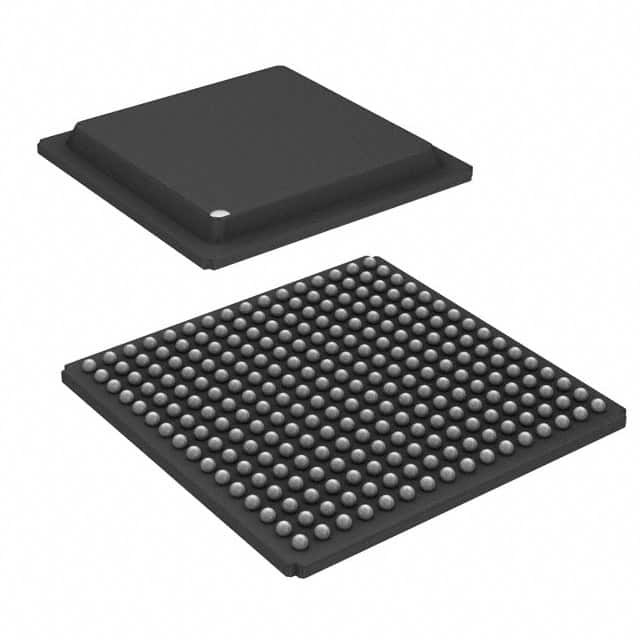

MPC850DEZQ50BU

SKU: 20656

Manufacturer: NXP Semiconductors

MPU PowerQUICC MPC8xx Processor RISC 32bit 50MHz 3.3V/5V 256-Pin BGA Tray

210 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	3A991a.2.
Part Status	Obsolete
HTS	8542.31.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Family Name	PowerQUICC MPC8xx Processor
Instruction Set Architecture	RISC
Device Core	MPC8xx
Number of CPU Cores	1
Data Bus Width (bit)	32
Instruction Cache Size	2KB
Maximum Speed (MHz)	50
Interface Type	I2C/SPI/UART/USB
UART	1
USART	0
Data Cache Size	1KB
USB	1
Multiply Accumulate	No
SPI	1
I2C	1
I2S	0
CAN	0
Ethernet	0
Ethernet Speed	10Mbps
Operating Supply Voltage-Min (V)	3.135
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	3.465
I/O Voltage (V)	5
Maximum Power Dissipation (mW)	725
Operating Temperature-Min	0
Operating Temperature-Max	95
Packing Method	Tray
Original Package	BGA
Pin Count	256
Standard Package Method	BGA
Terminal Form	Surface Mount
Package Height	1.84(Max)
Package Length	23
Package Width	23
PCB changed	256
