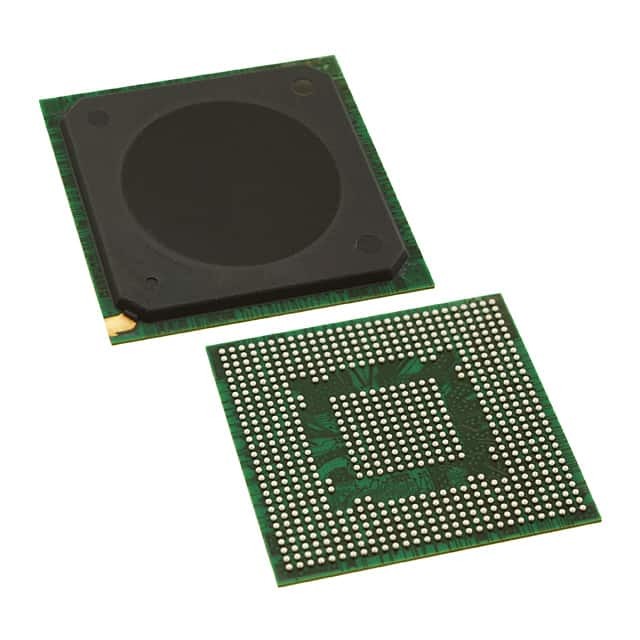

MPC8377ECVRANG

SKU: 37889

Manufacturer: NXP Semiconductors

MPU PowerQUICC II Pro MPC83xx Processor RISC 32bit 0.09um 800MHz 1.8V/2.5V/3.3V 689-Pin TEBGA II Tray

2980 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	5A002
Part Status	Obsolete
HTS	8542.31.00.01
Automotive	No
PPAP	No
Family Name	PowerQUICC II Pro MPC83xx Processor
Instruction Set Architecture	RISC
Device Core	e300
Number of CPU Cores	1
Data Bus Width (bit)	32
Instruction Cache Size	32KB
Maximum Speed (MHz)	800
Interface Type	Ethernet/I2C/SPI/UART/USB
UART	2
USART	0
Data Cache Size	32KB
USB	1
Multiply Accumulate	No
SPI	1
I2C	2
I2S	0
CAN	0
Ethernet	2
Operating Supply Voltage-Min (V)	1
Typical Operating Supply Voltage (V)	1.05
Operating Supply Voltage-Max (V)	1.1
I/O Voltage (V)	1.8
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tray
Original Package	TEBGA II
Pin Count	689
Standard Package Method	BGA
Terminal Form	Surface Mount
Package Height	1.73
Package Length	31
Package Width	31
