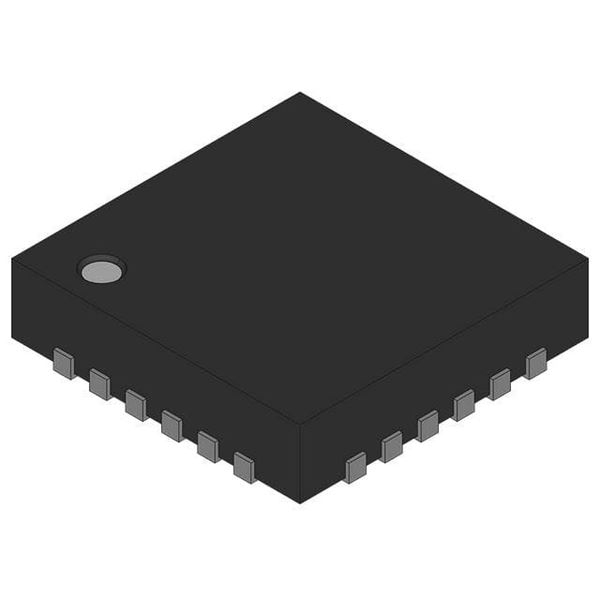

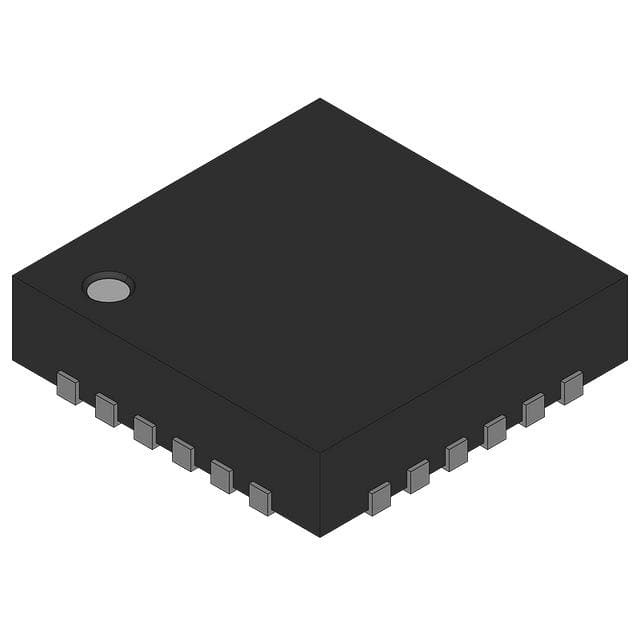

MPC17531ATEP

SKU: 84365

Manufacturer: NXP Semiconductors

Dual H-Bridge Motor Driver 3V 24-Pin QFN EP Tray

1590 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	Motor Driver
Motor Type	Brush DC Motor
Control Interface	PWM
Output Configuration	Dual H-Bridge
Maximum Output Current (A)	0.7
Maximum Peak Output Current (A)	1.4
Operating Supply Voltage-Min (V)	2.7
Operating Supply Voltage (V)	3
Typical Operating Supply Voltage (V)	3
Operating Supply Voltage-Max (V)	3.6
Maximum Operating Current (mA)	3
Maximum Power Dissipation (mW)	2500
Operating Temperature-Min	-20
Operating Temperature-Max	65
Packing Method	Tray
Pin Count	24
Standard Package Method	QFN
Original Package	QFN EP
Terminal Form	Surface Mount
Package Height	1(Max)
Package Length	4
Package Width	4
PCB changed	24
