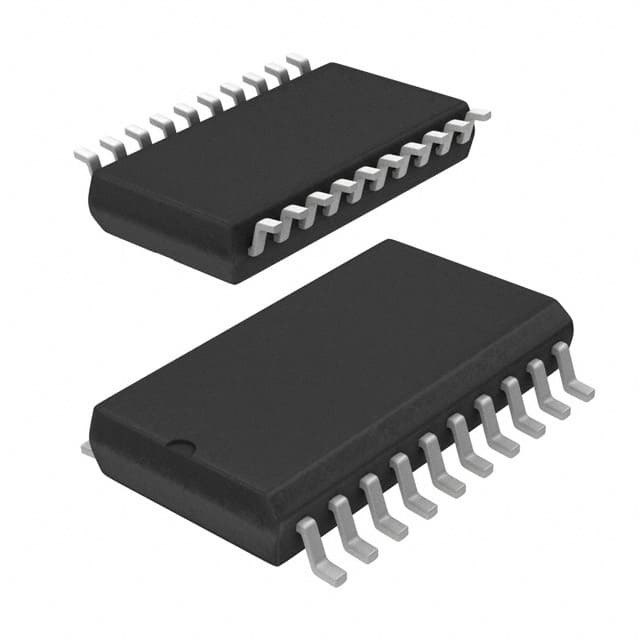

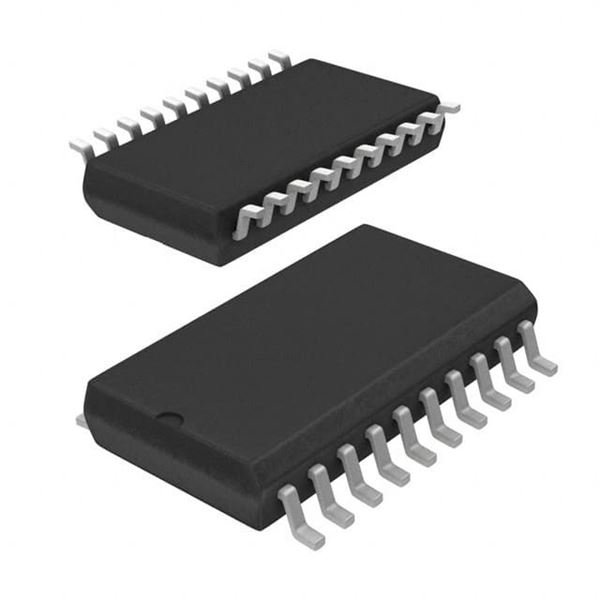

MC908JK3EMDWE

SKU: 108426

Manufacturer: NXP Semiconductors

MCU 8-bit HC08 CISC 4KB Flash 3.3V/5V 20-Pin SOIC W Tube

1270 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	NRND
SVHC	Yes
Automotive	No
PPAP	No
Family Name	HC08
Instruction Set Architecture	CISC
Device Core	HC08
Core Architecture	HC08
Maximum CPU Frequency (MHz)	8
Maximum Clock Rate (MHz)	8
Data Bus Width (bit)	8
Program Memory Type	FLASH
Program Memory Size	4KB
RAM Size	128B
Maximum Expanded Memory Size	64KB
Programmability	Yes
Number of I/Os	15
No. of Timers	2
PWM	2
Number of ADCs	Single
ADC Channels	12
ADC Resolution (bit)	8
USART	0
UART	0
USB	0
SPI	0
I2C	0
I2S	0
CAN	0
Ethernet	0
Analog Comparators	2
Operating Supply Voltage-Min (V)	2.7
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	5.5
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Extended
Packing Method	Tube
Original Package	SOIC W
Pin Count	20
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	2.4(Max)
Package Length	12.95(Max)
Package Width	7.6(Max)
PCB changed	20
