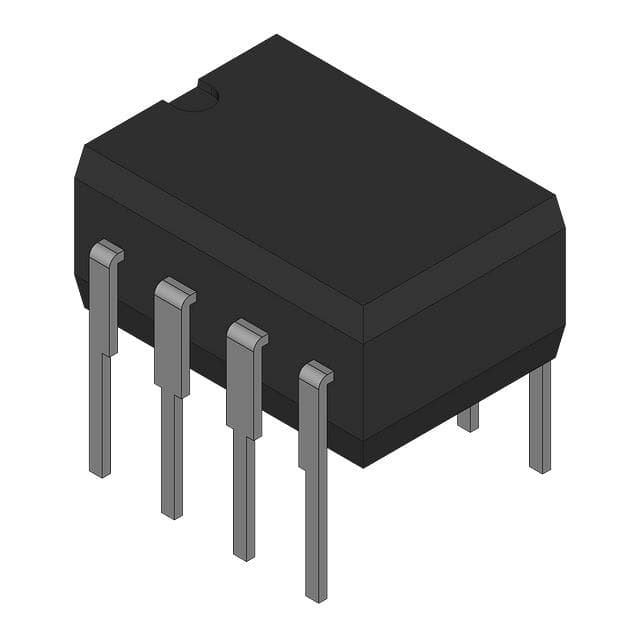

MC68HC908QT4CP

SKU: 16601

Manufacturer: NXP Semiconductors

MCU 8-bit HC08 CISC 4KB Flash 3.3V/5V 8-Pin PDIP Tray

4230 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.31.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Family Name	HC08
Instruction Set Architecture	CISC
Device Core	HC08
Core Architecture	HC08
Maximum CPU Frequency (MHz)	8
Maximum Clock Rate (MHz)	8
Data Bus Width (bit)	8
Program Memory Type	FLASH
Program Memory Size	4KB
RAM Size	128B
Maximum Expanded Memory Size	64KB
Programmability	Yes
Number of I/Os	6
No. of Timers	1
Timers Resolution (bit)	16
Timers Channels	2
PWM	1
Number of ADCs	Single
ADC Channels	4
ADC Resolution (bit)	8
USART	0
UART	0
USB	0
SPI	0
I2C	0
I2S	0
CAN	0
Ethernet	0
Watchdog	1
Parallel Master Port	No
Real Time Clock	No
Operating Supply Voltage-Min (V)	2.7
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	5.5
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tray
Original Package	PDIP
Pin Count	8
Standard Package Method	DIP
Terminal Form	Through Hole
Package Height	3.44(Max)
Package Length	10.16(Max)
Package Width	6.6(Max)
PCB changed	8
