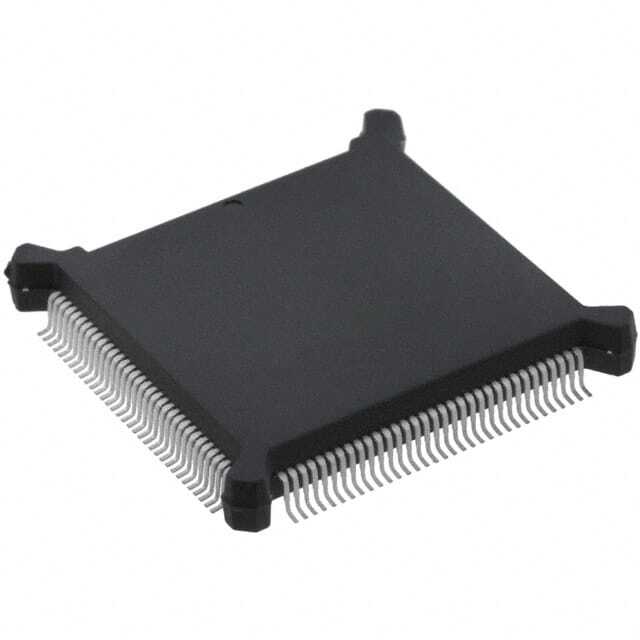

MC68306EH16B

SKU: 91116

Manufacturer: NXP Semiconductors

MPU ColdFire M68000 Processor RISC 32bit 16.7MHz 132-Pin PQFP Tray

1250 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.31.00.01
SVHC	Yes
Automotive	No
PPAP	No
Family Name	ColdFire M68000 Processor
Instruction Set Architecture	RISC
Device Core	ColdFire
Number of CPU Cores	1
Data Bus Width (bit)	32
Maximum Speed (MHz)	16.7
Interface Type	UART
UART	2
USART	0
USB	0
Multiply Accumulate	No
SPI	0
I2C	0
I2S	0
CAN	0
Memory Card Interface	SD
Ethernet	0
Operating Supply Voltage-Min (V)	4.75
Typical Operating Supply Voltage (V)	5
Operating Supply Voltage-Max (V)	5.25
Maximum Power Dissipation (mW)	500
Operating Temperature-Min	0
Operating Temperature-Max	70
Packing Method	Tray
Original Package	PQFP
Pin Count	132
Standard Package Method	QFP
Terminal Form	Surface Mount
Package Height	3.68(Max)
Package Length	27.94
Package Width	27.94
PCB changed	132
