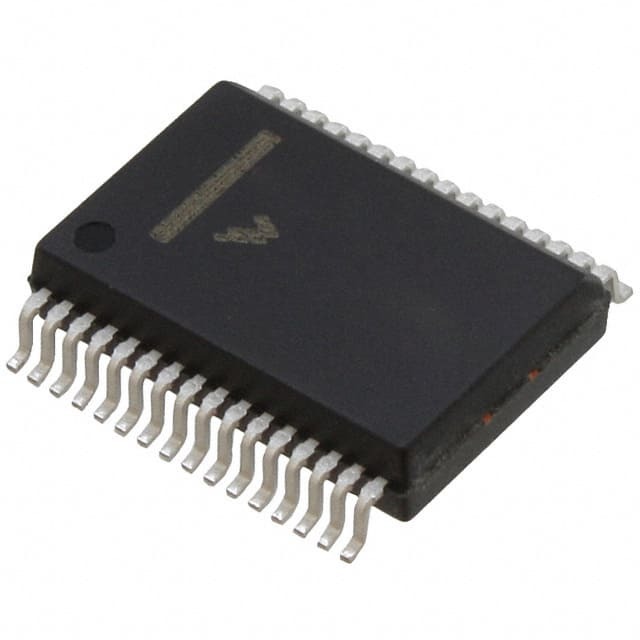

MC33GD3100A3EK

SKU: 27514

Manufacturer: NXP Semiconductors

Driver 15A 1-OUT High Side/Low Side Half Brdg Automotive 32-Pin SSOP Tube

1400 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	Yes
PPAP	Unknown
Driver Type	High Side
Bridge Type	Half Bridge
Number of Drivers	1
High and Low Sides Dependency	Synchronous
Type	MOSFET
Number of Outputs	1
Maximum Operating Frequency (kHz)	40
Operating Supply Voltage-Min (V)	-0.3
Operating Supply Voltage-Max (V)	40
Peak Output Current (A)	15
Operating Temperature-Min	-40
Operating Temperature-Max	125
Special Features	Under Voltage Lockout
Latch-Up Proof	Yes
Packing Method	Tube
Original Package	SSOP
Pin Count	32
Terminal Form	Surface Mount
Package Height	2.36(Max)
Package Length	11.1(Max)
Package Width	7.6(Max)
