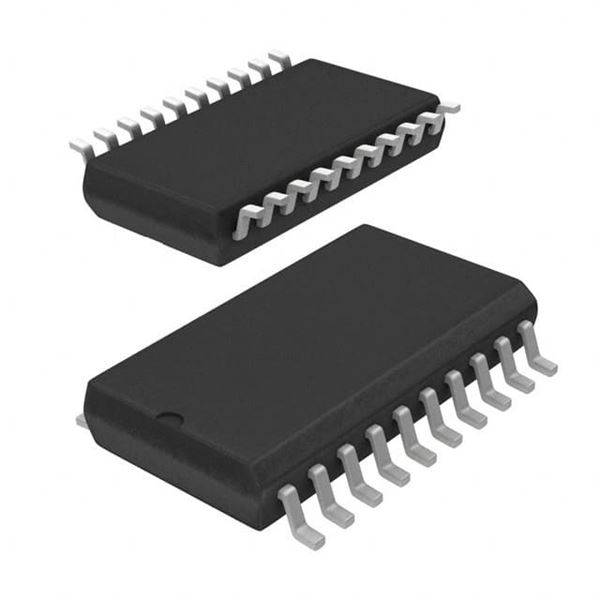

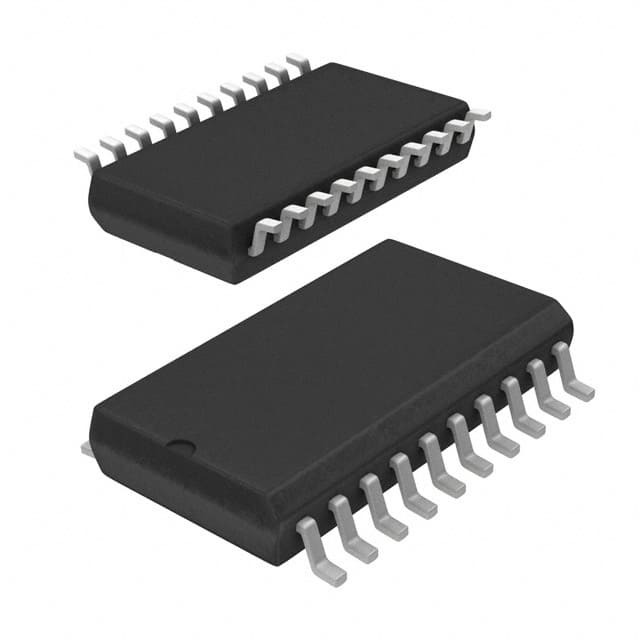

MC33883HEG

SKU: 76943

Manufacturer: NXP Semiconductors

Driver 1A 2-OUT High and Low Side H Brdg Inv Automotive 20-Pin SOIC W Tube

3430 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.39.00.01
SVHC	Yes
Automotive	Yes
PPAP	Unknown
Driver Type	High and Low Side
Driver Configuration	Inverting
Bridge Type	H Bridge
Number of Drivers	2
High and Low Sides Dependency	Independent
Type	MOSFET
Number of Outputs	2
Maximum Rise Time (ns)	80(Typ)
Maximum Fall Time (ns)	80(Typ)
Maximum Propagation Delay Time (ns)	200(Typ)
Input Logic Compatibility	CMOS
Operating Supply Voltage-Min (V)	5.5
Operating Supply Voltage-Max (V)	55
Maximum Supply Current (mA)	2.2(Typ)
Typical Input Low Threshold Voltage (V)	0.8(Max)
Typical Input High Threshold Voltage (V)	2(Min)
Peak Output Current (A)	1
Maximum Power Dissipation (mW)	1250
Operating Temperature-Min	-40
Operating Temperature-Max	125
Special Features	Under Voltage Lockout
Latch-Up Proof	No
Pin Count	20
Standard Package Method	SOP
Original Package	SOIC W
Terminal Form	Surface Mount
Package Height	2.4(Max)
Package Length	12.95(Max)
Package Width	7.6(Max)
PCB changed	20
