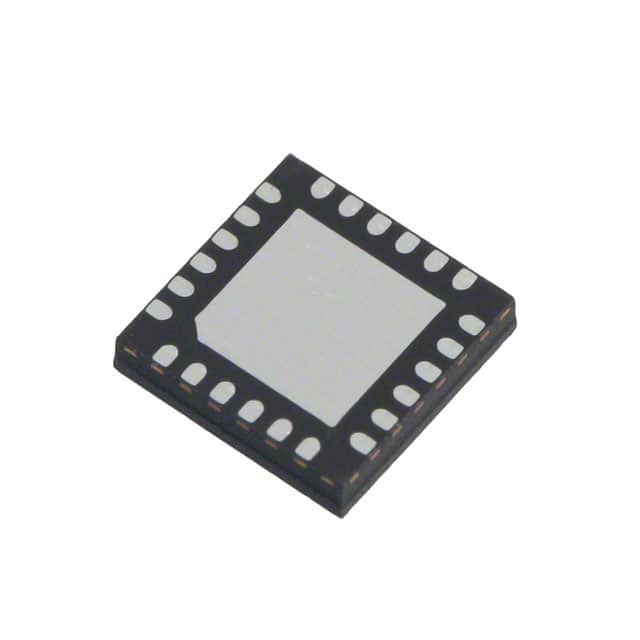

MC10XS3435DHFK

SKU: 66124

Manufacturer: NXP Semiconductors

Power Switch Hi Side 4-OUT 6A 0.036Ohm/0.036Ohm/0.126Ohm/0.126Ohm Automotive 24-Pin QFN EP Tray

1980 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.39.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	Yes
PPAP	Unknown
Type	High Side
Number of Outputs	4
Interface Type	Serial
Maximum Input Voltage (V)	6 to 20
Output Voltage Range (V)	-0.3 to 5.8
Operating Supply Voltage Range (V)	4 to 28
Minimum Output Current (A)	6(Max)
Supply Current (mA)	6.5
Switch On Resistance (Ohm)	0.036
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tray
Pin Count	24
Standard Package Method	QFN
Original Package	QFN EP
Terminal Form	Surface Mount
Package Height	2.15(Max)
Package Length	12
Package Width	12
PCB changed	24
