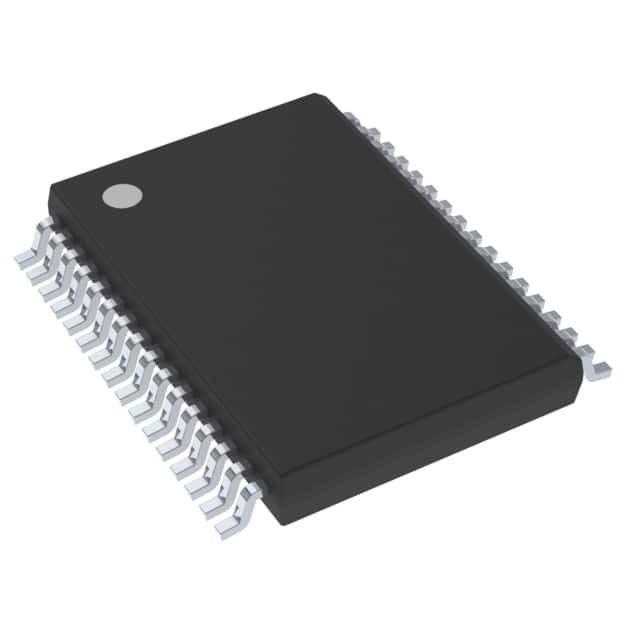

MC10XS3425EK

SKU: 41682

Manufacturer: NXP Semiconductors

Power Switch Hi Side 4-OUT 6A 0.036Ohm/0.036Ohm/0.09Ohm/0.09Ohm Automotive 32-Pin SOIC W EP Tube

2910 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.39.00.01
SVHC	Yes
Automotive	Yes
PPAP	Unknown
Type	High Side
Number of Outputs	4
Interface Type	Serial
Minimum Input Voltage (V)	4
Maximum Input Voltage (V)	28
Operating Supply Voltage Range (V)	3 to 5.5
Minimum Output Current (A)	6(Max)
Supply Current (mA)	5
Switch On Resistance (Ohm)	0.036(Max)
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tube
Pin Count	32
Standard Package Method	SOP
Original Package	SOIC W EP
Terminal Form	Surface Mount
Package Height	2.35(Max)
Package Length	11.1(Max)
Package Width	7.6(Max)
PCB changed	32
