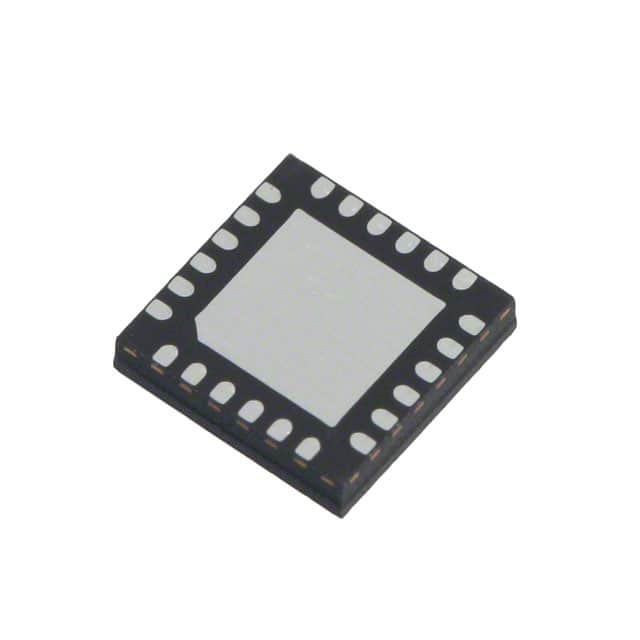

MC09XS3400AFK

SKU: 20377

Manufacturer: NXP Semiconductors

Power Switch Hi Side 4-OUT 6A 0.0325Ohm Automotive 24-Pin Power QFN EP Tray

2950 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.39.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	Yes
PPAP	Unknown
Type	High Side
Number of Outputs	4
Interface Type	Serial
Operating Supply Voltage Range (V)	4 to 28
Minimum Output Current (A)	6(Max)
Supply Current (mA)	7.2
Switch On Resistance (Ohm)	0.0325(Max)
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tray
Pin Count	24
Standard Package Method	QFN
Original Package	Power QFN EP
Terminal Form	Surface Mount
Package Height	2.15(Max)
Package Length	12
Package Width	12
PCB changed	24
