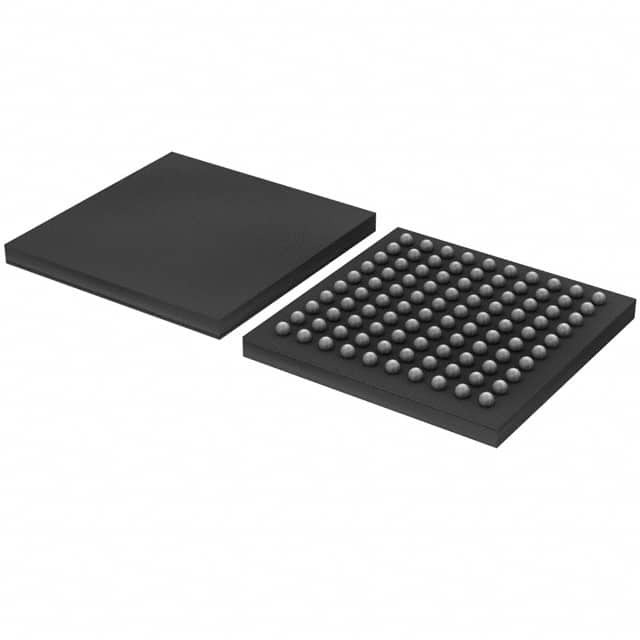

LPC4322JET100

SKU: 104402

Manufacturer: NXP Semiconductors

MCU 32-bit ARM Cortex M4/M0 RISC 512KB Flash 3.3V 100-Pin TFBGA Tray

1310 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.31.00.01
Automotive	No
PPAP	No
Family Name	LPC4300
Instruction Set Architecture	RISC
Device Core	ARM Cortex M4/M0
Core Architecture	ARM
Maximum CPU Frequency (MHz)	204
Maximum Clock Rate (MHz)	204
Data Bus Width (bit)	32
Program Memory Type	FLASH
Program Memory Size	512KB
RAM Size	104KB
Programmability	Yes
Interface Type	CAN/I2C/I2S/SPI/UART/USART/USB
Number of I/Os	49
No. of Timers	6
PWM	1
Number of ADCs	Dual
ADC Channels	4/4
ADC Resolution (bit)	10/10
Number of DACs	Single
DAC Resolution (bit)	10
USART	3
UART	1
USB	1
SPI	4
I2C	2
I2S	2
CAN	2
Ethernet	0
Watchdog	1
Special Features	CAN Controller
Operating Supply Voltage-Min (V)	2.4
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	3.6
Maximum Power Dissipation (mW)	1500
Operating Temperature-Min	-40
Operating Temperature-Max	105
Packing Method	Tray
Original Package	TFBGA
Pin Count	100
Standard Package Method	BGA
Terminal Form	Surface Mount
Package Height	0.8(Max)
Package Length	9.1(Max)
Package Width	9.1(Max)
PCB changed	100
