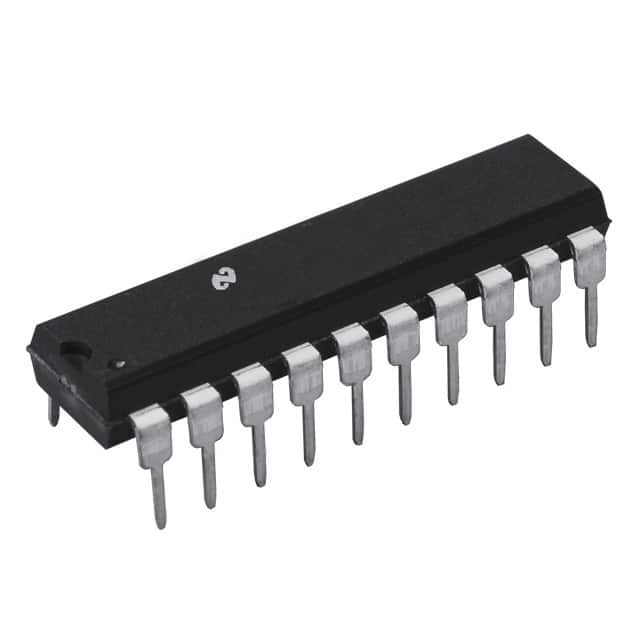

ADC0804LCN

SKU: 17625

Manufacturer: NXP Semiconductors

1-Channel Single ADC SAR 14ksps 8-bit Parallel 20-Pin PDIP

360 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Supplier Unconfirmed
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	No
PPAP	No
Converter Type	General Purpose
Architecture	SAR
Resolution	8bit
Number of ADCs	1
Number of Input Channels	1
Sampling Rate	14ksps
Digital Interface Type	Parallel
Input Type	Voltage
Input Signal Type	Differential
Voltage Reference	Supply
Polarity of Input Voltage	Unipolar
Voltage Supply Source	Single
Input Voltage	5V
Typical Single Supply Voltage (V)	5
Maximum Power Dissipation (mW)	1690
Integral Nonlinearity Error	1LSB
Sample and Hold	No
Single-Ended Input	No
Digital Supply Support	No
Operating Temperature-Min	-40
Operating Temperature-Max	85
Original Package	PDIP
Pin Count	20
Standard Package Method	DIP
Terminal Form	Through Hole
Package Height	3.2(Max)
Package Length	26.29(Max)
Package Width	6.4(Max)
PCB changed	20
