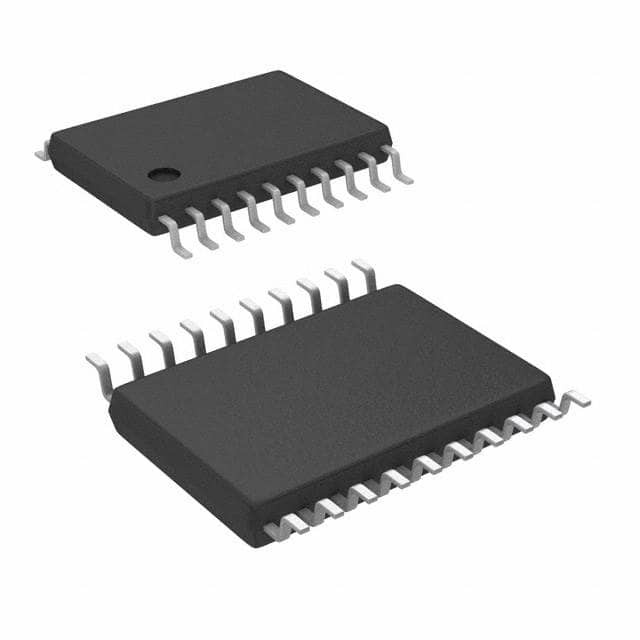

N76E003AT20

SKU: 98477

Manufacturer: Nuvoton Technology Corporation

MCU 8-bit 8051 CISC 18KB ROM 3.3V/5V 20-Pin TSSOP

96070 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
Part Status	Active
HTS	8542.31.00.01
Automotive	No
PPAP	No
Instruction Set Architecture	CISC
Device Core	8051
Core Architecture	8051
Maximum CPU Frequency (MHz)	16
Maximum Clock Rate (MHz)	16
Data Bus Width (bit)	8
Program Memory Type	ROM
Program Memory Size	18KB
RAM Size	1KB
Programmability	Yes
Interface Type	I2C/SPI/UART
Number of I/Os	18
No. of Timers	3
PWM	1
Number of ADCs	Single
ADC Channels	8
ADC Resolution (bit)	12
USART	0
UART	2
USB	0
SPI	1
I2C	1
I2S	0
CAN	0
Ethernet	0
Watchdog	1
Parallel Master Port	No
Real Time Clock	No
Operating Supply Voltage-Min (V)	2.4
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	5.5
Operating Temperature-Min	-40
Operating Temperature-Max	105
Original Package	TSSOP
Pin Count	20
Terminal Form	Surface Mount
Package Height	0.9
Package Length	6.5
Package Width	4.4
