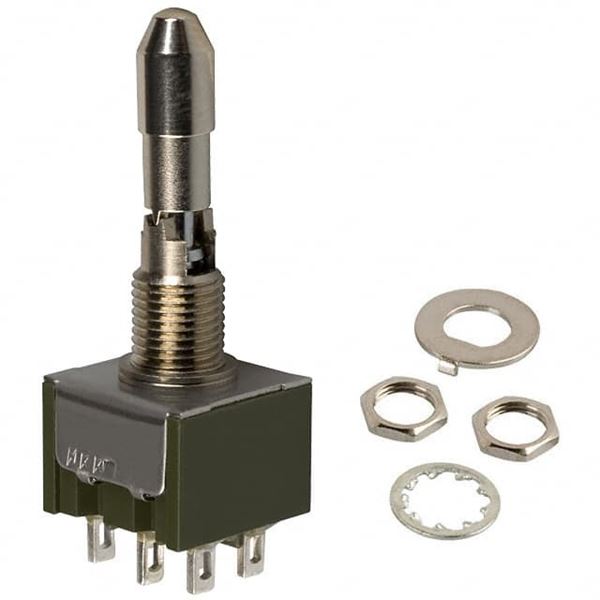

M2022LL1W01

SKU: 37781

Manufacturer: NKK Switches

Switch Toggle ON None ON DPDT Locking Lever Solder Lug 6A 250VAC 30VDC Panel Mount with Threads

4350 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8536.50.90.65
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Actuator Style	Locking Lever
Pole Throw Configuration	DPDT
Switch Configuration	ON None ON
Bushing Type	Threaded
Current Rating-Max(A)	6@125VAC
Dielectric Strength	1000VAC
Minimum Insulation Resistance (MOhm)	1000
Maximum Contact Resistance (mOhm)	10
Electrical Life (Cycles)	25000
Mechanical Life (Cycles)	50000
Actuator Color	Chrome
Actuator Length (mm)	16.5
Number of Rows	2
Row Spacing (mm)	4.8
Terminal Form	Panel Mount with Threads
Terminal Form	Solder Lug
Number of Terminals	6
Terminal Length (mm)	4.5
Terminal Pitch (mm)	4.7
Seal	Epoxy
Seal Location	Terminals
Seal Description	Epoxy
Body Orientation	Straight
Operating Temperature-Min	-30
Operating Temperature-Max	85
Size Type	Miniature
Thread Size	1/4-40
Body Length (mm)	13
Bushing Length (mm)	9.7
Body Depth (mm)	12.7
Body Height (mm)	9.4
Length (mm)	13
Depth (mm)	12.7
