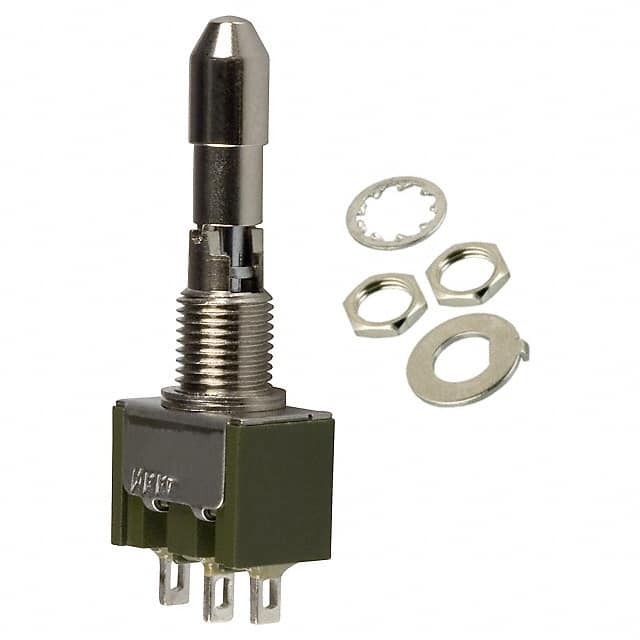

    M2012LL1W01

    SKU: 80098
    Manufacturer: NKK Switches
    Switch Toggle ON None ON SPDT Locking Lever Solder Lug 6A 250VAC 30VDC Panel Mount with Threads
    Download sample
    Request Free Samples
    2540 parts IN STOCK
    Shipped from :
    Netherlands
    Expected Ships :
    Rohs State : Need to verify

    QUANTITY

    Increments of 0 pcs
    Products specifications
    EU RoHS Compliant with Exemption
    ECCN (US) EAR99
    Part Status Active
    HTS 8536.50.90.65
    SVHC Yes
    SVHC Exceeds Threshold Yes
    Automotive No
    PPAP No
    Actuator Style Locking Lever
    Pole Throw Configuration SPDT
    Switch Configuration ON None ON
    Bushing Type Threaded
    Current Rating-Max(A) 6@125VAC
    Dielectric Strength 1000VAC
    Minimum Insulation Resistance (MOhm) 1000
    Maximum Contact Resistance (mOhm) 10
    Electrical Life (Cycles) 25000
    Mechanical Life (Cycles) 50000
    Actuator Color Chrome
    Actuator Length (mm) 16.5
    Number of Rows 1
    Terminal Form Panel Mount with Threads
    Terminal Form Solder Lug
    Number of Terminals 3
    Terminal Length (mm) 4.5
    Terminal Pitch (mm) 4.7
    Seal Epoxy
    Seal Location Terminals
    Seal Description Epoxy
    Body Orientation Straight
    Operating Temperature-Min -30
    Operating Temperature-Max 85
    Size Type Miniature
    Thread Size 1/4-40
    Body Length (mm) 13
    Bushing Length (mm) 9.7
    Body Depth (mm) 7.9
    Body Height (mm) 9.4
    Length (mm) 13
    Depth (mm) 8
