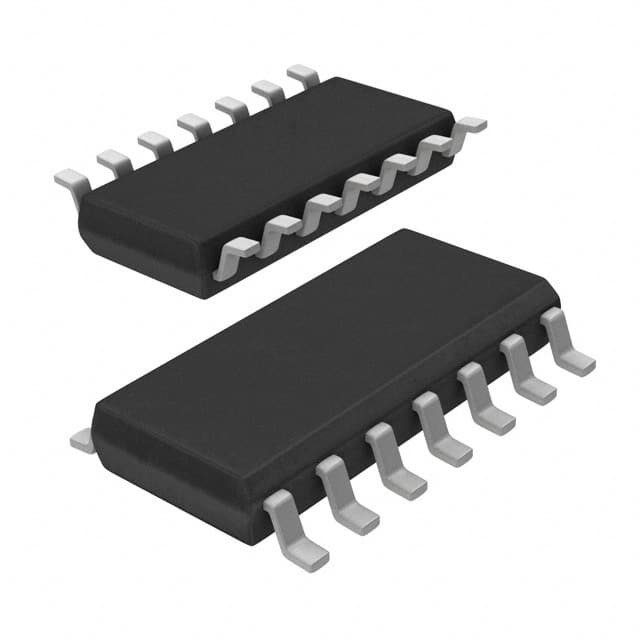

HEF4013BT-Q100J

SKU: 93945

Manufacturer: Nexperia

Flip Flop D-Type Pos-Edge 2-Element Automotive 14-Pin SO T/R

3280 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	Yes
PPAP	Unknown
Logic Family	HEF4000
Logic Function	D-Type
Number of Channels per Chip	2
Number of Elements per pcs	2
Number of Element Inputs	1
Number of Element Outputs	1
Bus Hold	No
Set/Reset	Set/Reset
Polarity	Inverting/Non-Inverting
Triggering Type	Positive-Edge
Maximum Propagation Delay Time @ Maximum CL (ns)	220@5V
Absolute Propagation Delay Time (ns)	220
Process Technology	CMOS
Input Signal Type	Single-Ended
Maximum Low Level Output Current (mA)	4.2(Min)
Maximum High Level Output Current (mA)	-4.2
Operating Supply Voltage-Min (V)	3
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	15
Maximum Quiescent Current (mA)	0.004
Propagation Delay Test Condition (pF)	50
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Automotive
Packing Method	Tape and Reel
Original Package	SO
Pin Count	14
Terminal Form	Surface Mount
Package Height	1.45(Max)
Package Length	8.75(Max)
Package Width	4(Max)
