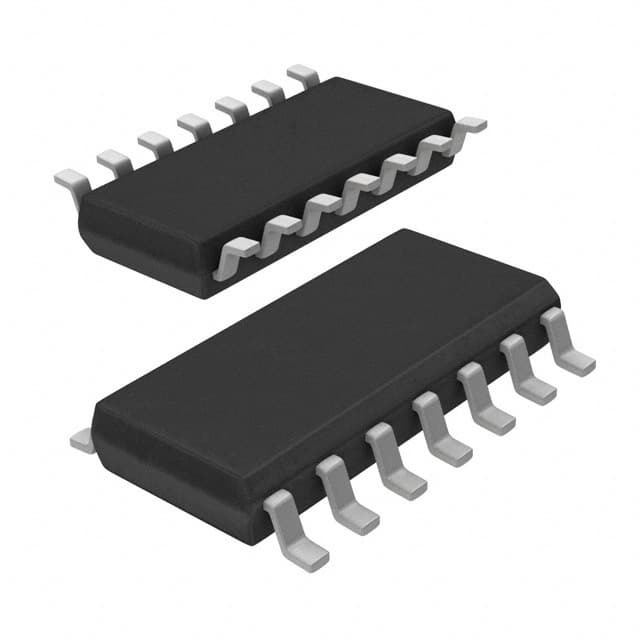

74HC4075D-Q100J

SKU: 52848

Manufacturer: Nexperia

OR Gate 3-Element 3-IN CMOS Automotive 14-Pin SO T/R

3100 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	Yes
PPAP	Unknown
Logic Family	HC
Logic Function	OR
Number of Elements per pcs	3
Number of Element Inputs	3-IN
Number of Output Enables per Element	0
Number of Selection Inputs per Element	0
Number of Element Outputs	1
Maximum Propagation Delay Time @ Maximum CL (ns)	100@2V
Absolute Propagation Delay Time (ns)	150
Process Technology	CMOS
Maximum Low Level Output Current (mA)	5.2
Maximum High Level Output Current (mA)	-5.2
Operating Supply Voltage-Min (V)	2
Typical Operating Supply Voltage (V)	5
Operating Supply Voltage-Max (V)	6
Maximum Quiescent Current (uA)	2
Propagation Delay Test Condition (pF)	50
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Automotive
Packing Method	Tape and Reel
Original Package	SO
Pin Count	14
Terminal Form	Surface Mount
Package Height	1.45(Max)
Package Length	8.75(Max)
Package Width	4(Max)
