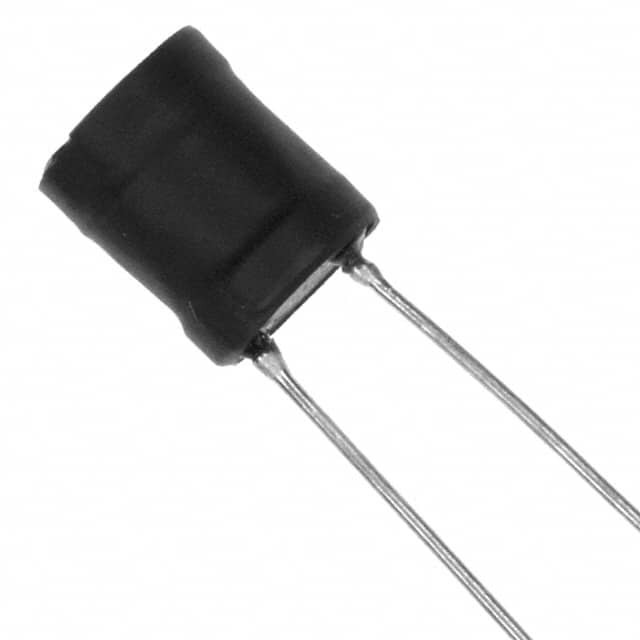

13R225C

SKU: 8156

Manufacturer: Murata Power Solutions

Inductor General Purpose Wirewound 2.2mH 10% 1KHz 240mA 4.5Ohm DCR RDL Carton

2560 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8504.50.80.00
Automotive	No
PPAP	No
Type	General Purpose
Technology	Wirewound
Inductance (H)	2200u
Tolerance	10%
Inductance Test Frequency (Hz)	1K
Maximum DC Current (A)	0.24
Maximum Saturation Current (A)	0.24
Maximum DC Resistance (Ohm)	4.5
Terminal Form	Through Hole
Lead Style	Radial
Terminal Pitch (mm)	5
Number of Terminals	2
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Carton
Product Diameter (mm)	9.5
